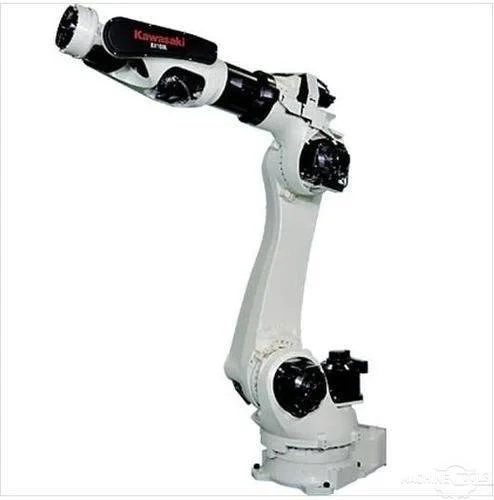

NEW KAWASAKI BX200L

Kawasaki BX200L Robot, E02 Control, Never Used

This new, never-used Kawasaki BX200L (nan) is a robot available from R.A.B. Industries. It is equipped with the nan controller and 7-axis configuration.

1- BRAND NEW KAWASAKI MODEL BX200L

WITH E02 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104939

======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE

AND DEEMED RELIABLE.

ROBOT SPECIFICATIONS:

PAYLOAD: 200KG

MAX. REACH: 2,597 MM

ROBOT CATEGORY: LARGE GENERAL PURPOSE ROBOTS (100-300KG PAYLOAD)

MOUNTING: FLOOR

ROBOT SERIES: BX SERIES

POSITIONAL REPEATABILITY: ±0.06MM

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±160

ARM OUT-IN (JT2): +76 - −60

ARM UP-DOWN (JT3): +90 - −75

WRIST SWIVEL (JT4): ±210

WRIST BEND (JT5): ±125

WRIST TWIST (JT6): ±210

MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 105

ARM OUT-IN (JT2): 90

ARM UP-DOWN (JT3): 100

WRIST SWIVEL (JT4): 120

WRIST BEND (JT5): 120

WRIST TWIST (JT6): 200

ROBOT WRIST MOMENT (N X M)

WRIST SWIVEL (JT4): 1,334

WRIST BEND (JT5): 1,334

WRIST TWIST (JT6): 588

ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 200

WRIST BEND (JT5): 200

WRIST TWIST (JT6): 155

ROBOT MASS (KG)

890

DEGREE OF PROTECTION

ROBOT WRIST: IP67

BASE AXES: IP54

EQUIPPED WITH:

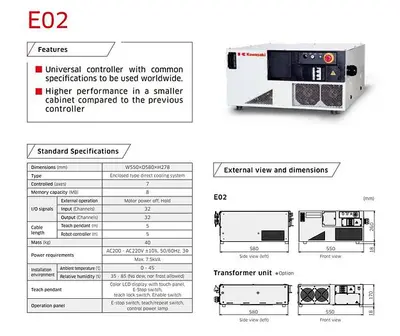

KAWASAKI ROBOTICS E02 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY

Kawasaki makes a wide array of Industrial Robots suited for a variety of applications. They design and manufacture

fantastic products, and they have a great track record across their decades of work in Robotics - and in many other areas. They use their own Industrial Robots to manufacture their own Kawasaki Products, and some of the more well known products can be seen on your favorite off road trails, or even on the freeway! Kawasaki is heavily involved in Wafer Handling Robots, which is related to the Semi Conductor Industry. They also have Food and Medical Grade Robots, Explosion Proof (Thank Goodness!) Painting Robots, Collaborative Robots, Highly Flexible 7 Axis Robots, and Education Robots, too. Kawasaki has a strong presence in the Automotive Industry, which one may expect from an Industrial Robot Manufacturer, but they have their hands in a little bit of everything - sort of like we do at R.A.B. Industries. Industrial Robots, Wafer Handling Robots, Internal Combustion Engines, everyone's favorite Dirt Bikes, and even enormous Tunnel Boring Machines - They have the knowledge, experience, and know-how that you would expect from such a successful, diverse, and well known company. You will not be disappointed with your Kawasaki robot. They can be programmed simply from the pendant - called block style programming, or from their offline programming software, called K-Roset. They also interface with 3rd party offline programming applications. Their internal programming language - called AS Language, is similar to C+, and is very powerful!

Kawasaki's large general-purpose robots (100-300kg payload) are used in diverse industries, such as the automobile, aerospace, machinery, metal working, electric, electronics and food industries. With high versatility, they can be used for a wide range of applications including assembling, handling and spot welding.

The BX/BT series robots are equipped with hollow wrists and arms.

Flexible, Heavy Duty Robot

The BX200L features a hollow wrist for housing cables and hoses. The robust, yet lightweight arm design provides functionality, flexibility and efficiency for maximum spot welding effectiveness and multiple-purpose usage.
