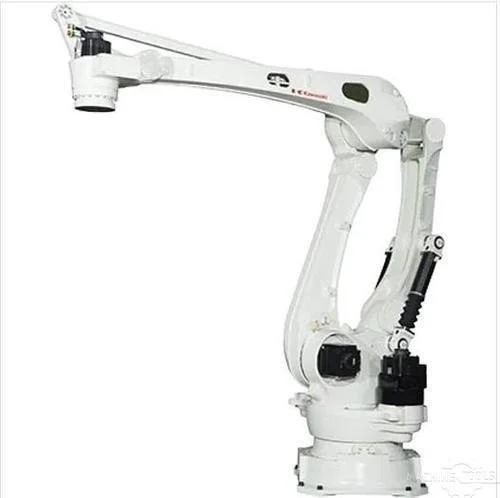

NEW KAWASAKI CP300L

This new, never-used Kawasaki CP300L (nan) is a robot available from R.A.B. Industries. It is equipped with the nan controller and 4-axis configuration.

1- BRAND NEW KAWASAKI MODEL CP300L PALLETIZER ROBOT

WITH E03 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104935

======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.

ROBOT SPECIFICATIONS:

PAYLOAD: 300KG

MAX. REACH: 3,255MM

ROBOT CATEGORY: ARTICULATED 4 AXIS ROBOT

MOUNTING: FLOOR

POSITIONAL REPEATABILITY: ±0.5MM

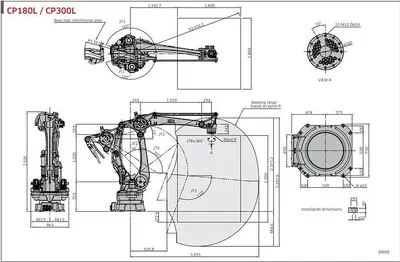

WORKING AREA (MM):

WIDTH: 1,800.00

DEPTH: 1,600.00

HEIGHT: 2,200.00

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±160

ARM OUT-IN (JT2): +95 - –46

ARM UP-DOWN (JT3): +15 - –110

WRIST SWIVEL (JT4): ±360

MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 115

ARM OUT-IN (JT2): 100

ARM UP-DOWN (JT3): 100

WRIST SWIVEL (JT4): 250

MOMENT OF INERTIA (KG X M SQUARED)

100

MAXIMUM CYCLES PER HOUR

1,700

ROBOT MASS (KG)

1,600

EQUIPPED WITH:

KAWASAKI ROBOTICS E03 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY

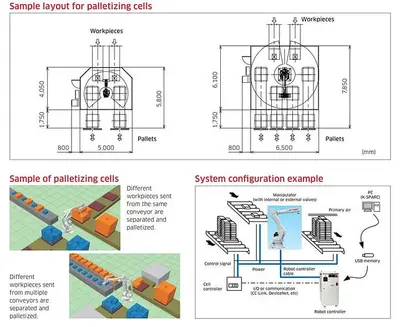

In today’s highly competitive marketplace, meeting the demand for just-in-time deliveries, flexible packaging, the freshest products, or the highest production line efficiencies can be crucial to a company’s success. Efforts to meet these demands have led to the development of automation systems for the end-of-line and distribution processes of palletizing and depalletizing.

Kawasaki’s robotic palletizing solutions provide the pallet pattern flexibility, tooling flexibility, and cycle times needed to deal with multi-variety and small-batch production, and reduce process change costs. Kawasaki Robotics offers two lines of palletizing robots with a wide range of payload options to suit most needs, including the RD080N robot with a maximum payload of 80 kg, and CP180L/300L/500L/700L robots with maximum payloads of 180/300/500/700 kg. Each has industry leading reach, speed and quality to deliver high-performance automation technology for most any palletizing application.

Kawasaki can provide a solution to give your production line the palletizing flexibility and product rate it needs to compete in today's economy.
