This used FANUC LR Mate 200iD/7H (2013) is a robot available from R.A.B. Industries. It is equipped with the R-30iB controller and 5-axis configuration.

1- USED FANUC LR MATE 200iD/7H 5 AXIS CNC ROBOT

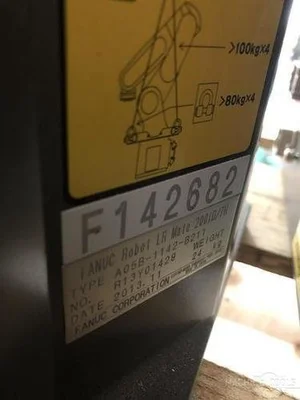

SERIAL NUMBER F142682

DATE OF MFG. 11/2013

STK#104892

======================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE

ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

Robot Specifications:

Axes: 5 Payload:

7.00kg

H-Reach: 717.00mm

Repeatability: ±0.0200mm

Robot Mass: 24.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 450 °/s (7.85 rad/s)

J2 380 °/s (6.63 rad/s)

J3 520 °/s (9.08 rad/s)

J4 545 °/s (9.51 rad/s)

J5 1500 °/s (26.18 rad/s)

Robot Motion Range:

J1 +340° - 360°

J2 ±245°

J3 ±420°

J4 ±250°

J5 ±720°

EQUIPPED WITH:

FANUC SYSTEM R-30iB MATE OPEN AIR CONTROLLER

CABLES

TEACH PENDANT

Robot Applications:

Assembly Robots

Dispensing Robots

Machine Loading Robots

Machine Tending Robots

Material Removal Robots

Order Picking Robots

Packaging Robots

Pick and Place Robots

FANUC LR Mate 200iD/7H is a compact, small robot with high speed and performance. This small robot can handle a heavier payload of 7kg, and comes with the advanced R-30iB controller. The FANUC LR Mate 200iD/7H can be mounted on the floor, upside-down, or at an angle, and can perform a variety of applications ranging from packaging to material removal. If you are looking for a small robot to deliver ultimate performance, the LR Mate 200iD 7H is a great fit.

Fanuc Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
