USED 2016 FANUC ARCMATE 100IC/7L

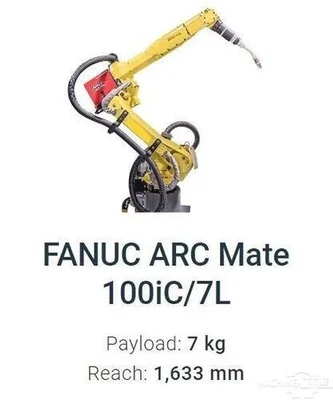

FANUC Arcmate 100iC/7L Robot, R-30iB Control, Used, 2016

This used FANUC Arcmate 100iC/7L (2016) is a robot available from R.A.B. Industries. It is equipped with the R-30iB controller.

With A 1 kg higher payload then the Fanuc Arc Mate 100iC/6L the [Fanuc Arc Mate 100iC/7L](https://www.rabindustries.com/blog/2838-fanuc-arc-mate-100ic-7l-data-sheet) is a

very flexible robot in world of arc welding robot applications. It can be mounted on the floor or a riser or integrated in a welding cell on an angle or inverted. With a nimble repeatability of just 0.08 mm +/- you and high speed motion and wide range of motion it can reach even the most difficult places on your welding applications. There are multiple controllers that can be paired with the 100iC/7L such as the R-30iB, the R-30iB Mate Cabinet, the R-30iB A-Cabinet, the R-30iB B-Cabinet, or the R-30iB iPendant touch.

Robot Specifications:

Axes: 6

Payload: 7kg

H-Reach: 1633mm

Repeatability: ±0.08mm

Robot Mass: 135kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 230 °/s (4.01 rad/s)

J2 225 °/s (3.93 rad/s)

J3 230 °/s (4.01 rad/s)

J4 430 °/s (7.5 rad/s)

J5 430 °/s (7.5 rad/s)

J6 630 °/s (11 rad/s)

Robot Motion Range:

J1 +340° - 360°

J2 ±250°

J3 ±447°

J4 ±380°

J5 ±380°

J6 ±720°

Applications:

Welding Automation Robots

[Arc Welding Robots](https://www.rabindustries.com/blog/54432-industrial-robotic-mig-welding)

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

[See Our Arc Mate Stock as well as other Robots that lend themselves to Mig Welding Applications](https://www.rabindustries.com/listings?q=FANUC+Arc+Mate).
