USED 2013 FANUC ARCMATE 100IC/6L

FANUC Arcmate 100iC/6L Robot, R-30iB Control, Used, 2013

This used FANUC Arcmate 100iC/6L (2013) is a robot available from R.A.B. Industries. It is equipped with the R-30iB controller and 6-axis configuration.

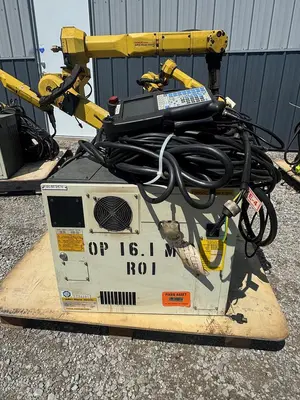

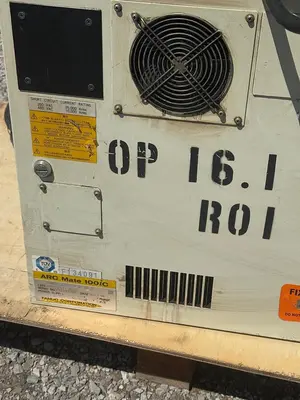

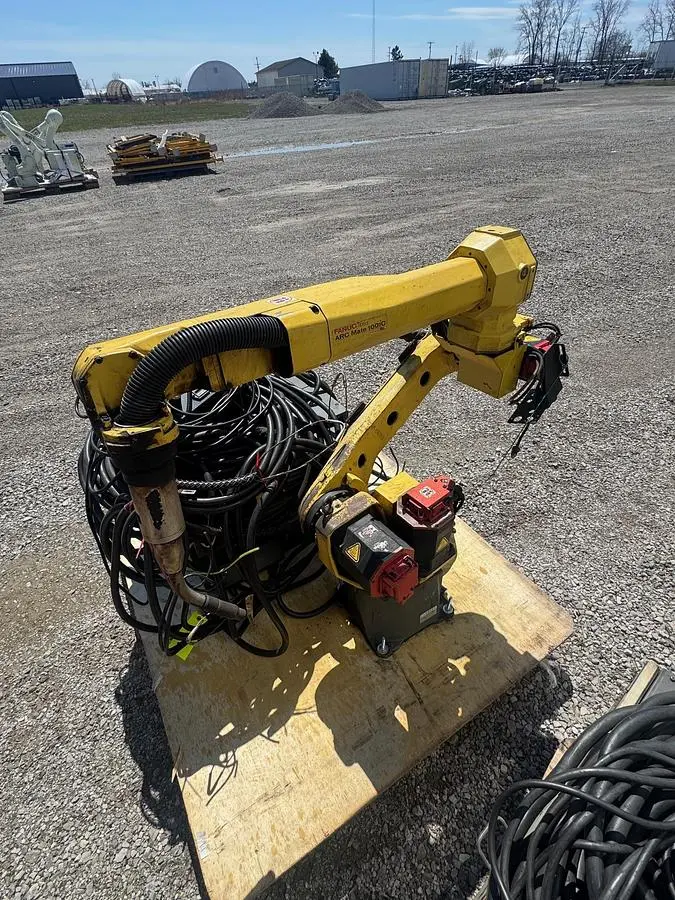

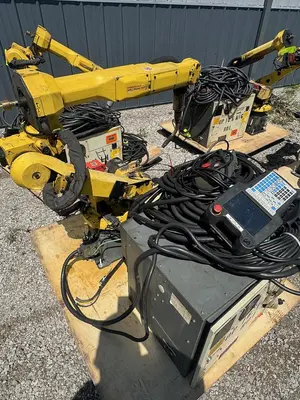

1-USED FANUC ARCMATE 100iC/6L 6 AXIS ROBOT WITH R30iB CONTROLLER,

REMOTE OP BOX, TEACH PENDANT, CABLES, AND TORCH

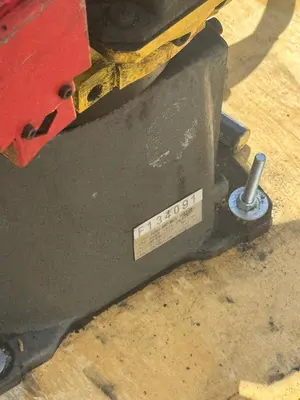

SERIAL NUMBER F134091

DATE OF MFG. 02/2013

STK#104915

=========================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

The Fanuc ARC Mate 100iC/6L is a six axis welding robot arm designed for precise welding and cutting applications. The extended reach of 1,632 millimeters of the Fanuc ARC Mate 100iC 6L welding robot allows easy access to large parts and complex tooling. This creates a very large work area while also maintaining its high speeds and slim wrist to help fit into small openings. The 100iC/6L moves 15% faster than the other robots in its class and can process large parts and complex tooling without worrying about compromising productivity. With a 6 kilogram maximum payload capacity, the ARC Mate 100iC/6L robot allows for an arc welding torch or other light-weight end-of-arm-tooling to be attached to the welding robot arm's wrist.

Robot Specifications

Axes: 6

Payload: 6kg

H-Reach: 1632mm

Repeatability: ±0.1mm

Robot Mass: 135kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed

J1 210 °/s (3.67 rad/s)

J2 190 °/s (3.32 rad/s)

J3 210 °/s (3.67 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 600 °/s (10.47 rad/s)

Robot Motion Range

J1 ±360°

J2 ±250°

J3 ±445°

J4 ±380°

J5 ±380°

J6 ±720°

Applications

- Arc Welding Robots
- MIG Welding Robots
- Plasma Cutting Robots
- Plasma Welding Robots
- TIG Welding Robots
