USED 2013 FANUC ARCMATE 100IC/6L

This used FANUC Arcmate 100iC/6L (2013) is a robot available from R.A.B. Industries. It is equipped with the R-30iB controller and 6-axis configuration.

1-USED FANUC ARCMATE 100iC/6L MIG WELDING 6 AXIS ROBOT WITH R30iB

SERIAL NUMBER F134058

DATE OF MFG. 02/2013

STK#104917

=========================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

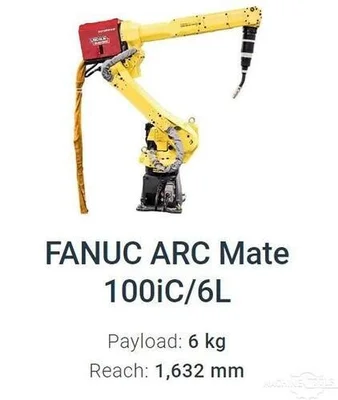

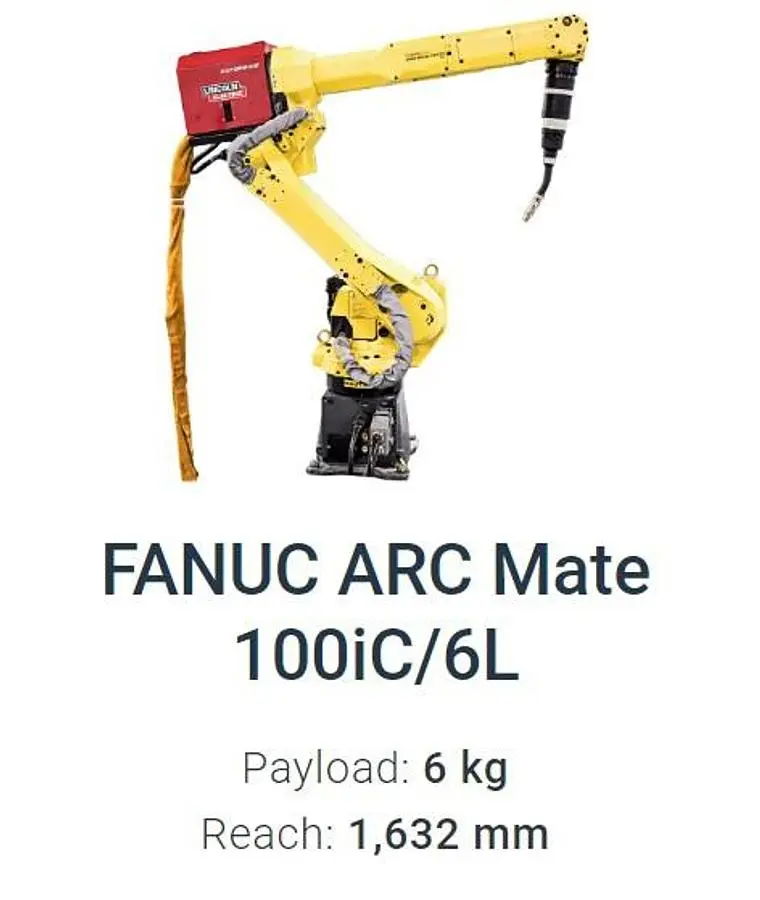

The Fanuc ARC Mate 100iC/6L is a six axis welding robot arm designed for precise welding and cutting applications. The extended reach of 1,632 millimeters of the Fanuc ARC Mate 100iC 6L welding robot allows easy access to large parts and complex tooling. This creates a very large work area while also maintaining its high speeds and slim wrist to help fit into small openings. The 100iC/6L moves 15% faster than the other robots in its class and can process large parts and complex tooling without worrying about compromising productivity. With a 6 kilogram maximum payload capacity, the ARC Mate 100iC/6L robot allows for an arc welding torch or other light-weight end-of-arm-tooling to be attached to the welding robot arm's wrist.

Robot Specifications:

Axes: 6

Payload: 6kg

H-Reach: 1632mm

Repeatability: ±0.1mm

Robot Mass: 135kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 210 °/s (3.67 rad/s)

J2 190 °/s (3.32 rad/s)

J3 210 °/s (3.67 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 600 °/s (10.47 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±250°

J3 ±445°

J4 ±380°

J5 ±380°

J6 ±720°

Applications:

Arc Welding Robots

MIG Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

TIG Welding Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
