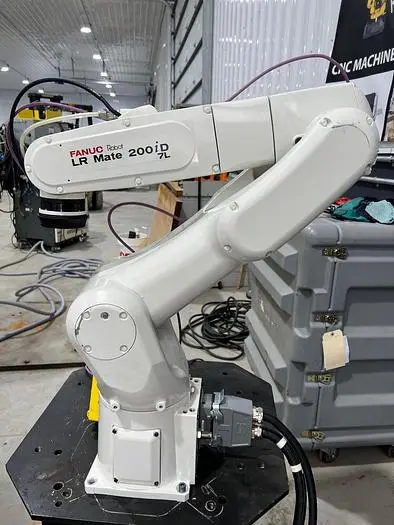

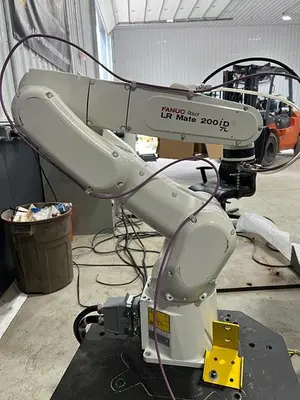

USED 2019 FANUC LR MATE 200ID/7L

This used FANUC LR Mate 200iD/7L (2019) is a robot available from R.A.B. Industries. It is equipped with the R30iB controller and 6-axis configuration.

1 - USED FANUC LR MATE 200iD/7L WITH R30iB MATE PLUS COMPACT CONTROLLER, CABLES, AND TEACH PENDANT.

SERIAL NUMBER F248877

DATE OF MFG 2019

STK#104821

===================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

Robot Specifications

Axes: 6

Payload: 7kg

H-Reach: 911mm

Repeatability: ±0.03mm

Robot Mass: 27kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed

J1 370 °/s (6.46 rad/s)

J2 310 °/s (5.41 rad/s)

J3 410 °/s (7.16 rad/s)

J4 550 °/s (9.6 rad/s)

J5 545 °/s (9.51 rad/s)

J6 1000 °/s (17.45 rad/s)

Robot Motion Range

J1 +340° - 360°

J2 ±245°

J3 ±420°

J4 ±380°

J5 ±250°

J6 ±720°

EQUIPPED WITH:

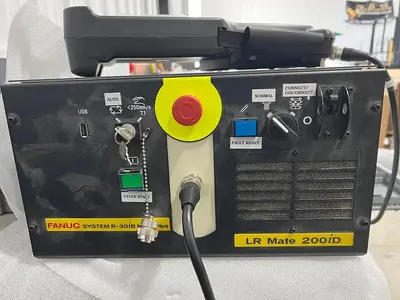

FANUC LR MATE R30iB COMPACT CONTROLLER

FANUC ROBOT CONNECTION CABLES

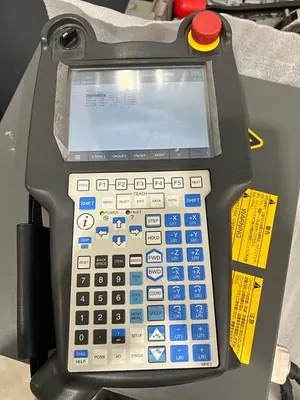

FANUC COLOR I-PENDANT
