USED 2008 FANUC FANUC M710IC/70T
Overview
Description
FANUC M710iC/70T Robot, R-30iA Control, Used, 2008
Specifications
This used FANUC M710iC/70T (2008) is a robot available from R.A.B. Industries. It is equipped with the R-30iA controller.

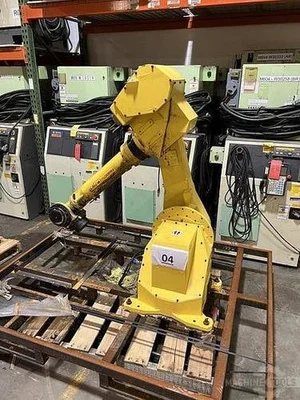

1-USED FANUC M-710iC/70T GANTRY ROBOT WITH R30iA CONTROL
SERIAL NUMBER F90153
DATE OF MFG 03/2008
STK#104813
=================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
This FANUC M-710iC/70T is a rail mounted robot that offers a large working range. This robot has a 1900mm reach and a 70kg payload, allowing it to lift heavy work pieces with ease. The applications that can be performed with the M-710iC/70T are numerous! It can handle assembly, picking, packing, machine loading and unloading, material removal, painting, coating, and part transfer processes, making it extremely versatile for any manufacturer.
Being able to move on the rail, the M710iC/70T R30iA can easily reach multiple work-pieces which reduces investment costs. The rail mounting also cuts down on the amount of floor-space that needs to be devoted to the system.
Robot Specifications:
Axes: 6
Payload: 70kg
H-Reach: 1900mm
Repeatability: ±0.07mm
Robot Mass: 410kg
Structure: Articulated
Mounting: Inverted
Robot Motion Speed:
J1 3 m/s
J2 120 °/s (2.09 rad/s)
J3 120 °/s (2.09 rad/s)
J4 225 °/s (3.93 rad/s)
J5 225 °/s (3.93 rad/s)
J6 225 °/s (3.93 rad/s)
Robot Motion Range:
J1 +7.2mm° - 46.2mm°
J2 ±261°
J3 ±491°
J4 ±720°
J5 ±250°
J6 ±720°
Applications:
Thermal Spray Robots
Dispensing Robots
Injection Molding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Palletizing Robots
Fiberglass Cutting Robots
Arc Welding Robots
EQUIPPED WITH:
Fanuc R30iA Robot Control
Fanuc Robot Connection Cables
Fanuc Teach Pendant
