USED 2003 FANUC FANUC M6IB/6S

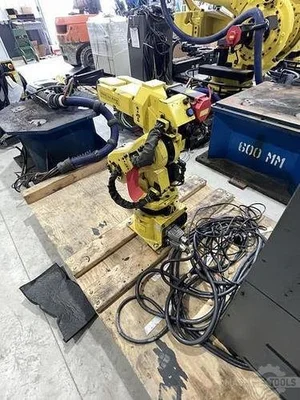

FANUC M6iB/6S Robot, R30iA Control, Used, 2003, S/N F58851

This used FANUC M6iB/6S (2003) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller.

1-USED FANUC M6iB/6S ROBOT WITH RJ3iB CONTROLLER

SERIAL NUMBER F58851

DATE OF MFG 08/2003

STK#104811

=================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

This FANUC M-6iB/6S is a short arm robot arm designed for compact, confined spaces. The M6iB/6S RJ3iB robot arm performs material handling tasks where parts sizes and work envelopes are less of an issue. A +/- 0.08 millimeter repeatability and a 6 kilogram maximum payload capacity allow the M 6iB/6S to perform precise, lightweight material handling.

Robot Specifications:

Axes: 6

Payload: 6kg

H-Reach: 951mm

Repeatability: ±0.08mm

Robot Mass: 135kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 200 °/s (3.49 rad/s)

J2 200 °/s (3.49 rad/s)

J3 260 °/s (4.54 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 720 °/s (12.57 rad/s)

Robot Motion Range:

J1 ±170°

J2 ±125°

J3 ±155°

J4 ±190°

J5 ±140°

J6 ±360°

EQUIPPED WITH:

FANUC R30iA CONTROLLER

FANUC RCC CABLES

FANUC COLOR TEACH PENDANT
