USED 2009 FANUC FANUC M410IB/160
Overview
Description

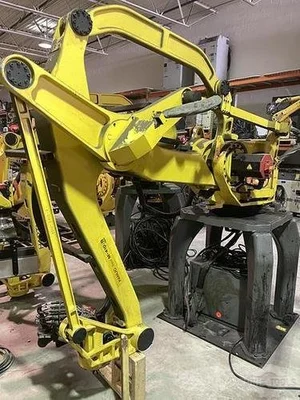

FANUC M410iB/160 Robot, R30iA Control, Used, 2009
Specifications
This used FANUC M410iB/160 (2009) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller and 4-axis configuration.
1-FANUC M410iB/160 4 AXIS PALLETIZING ROBOT WITH R30iA CONTROLLER

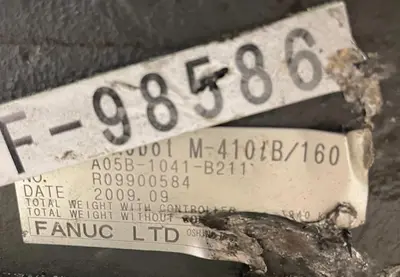

SERIAL NUMBER F98586
DATE OF MFG. 09/2009
STK#104801
========================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
This FANUC M-410iB/160 is one of the latest-generation palletizing robots engineered to produce high-quality work with its precision, high-speed, and high-payload offerings robot. It features a 160kg payload and delivers high-speed performance, with one of the fastest cycle times and payloads in its class. There are various software options available with the FANUC M-410iB/160 such as Collision Guard, Pallet Tool, Pallet PRO, web-based software for remote connectivity, machine vision (iRVision-2D or 3D), and iPendant.
Robot Specifications:
Axes: 4
Payload: 160kg
H-Reach: 3140mm
Repeatability: ±0.5mm
Robot Mass: 1940kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 130 °/s (2.27 rad/s)
J2 130 °/s (2.27 rad/s)
J3 135 °/s (2.36 rad/s)
J4 300 °/s (5.24 rad/s)
Robot Motion Range:
J1 ±360°
J2 ±144°
J3 ±136°
J4 ±540°
EQUIPPE WITH:
FANUC R30iA CONTROLLER
FANUC ROBOT CONNECTION CABLES
FANUC TEACH PENDANT
