USED 2009 FANUC FANUC M410IB/160

This used FANUC M410iB/160 (2009) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller and 4-axis configuration.

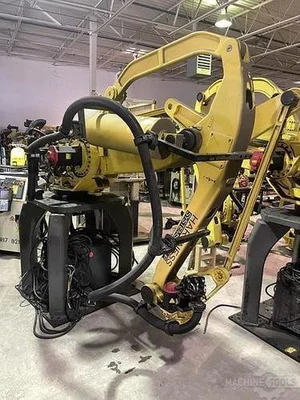

1-FANUC M410iB/160 4 AXIS PALLETIZING ROBOT WITH R30iA CONTROLLER

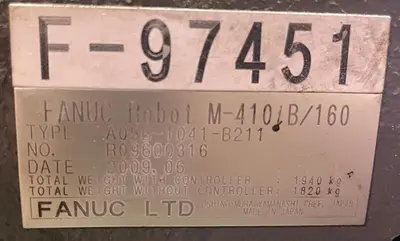

SERIAL NUMBER F97451

DATE OF MFG. 06/2009

STK#104802

========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

This FANUC M-410iB/160 is one of the latest-generation palletizing robots engineered to produce high-quality work with its precision, high-speed, and high-payload offerings robot. It features a 160kg payload and delivers high-speed performance, with one of the fastest cycle times and payloads in its class. There are various software options available with the FANUC M-410iB/160 such as Collision Guard, Pallet Tool, Pallet PRO, web-based software for remote connectivity, machine vision (iRVision-2D or 3D), and iPendant.

Robot Specifications:

Axes: 4

Payload: 160kg

H-Reach: 3140mm

Repeatability: ±0.5mm

Robot Mass: 1940kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 130 °/s (2.27 rad/s)

J2 130 °/s (2.27 rad/s)

J3 135 °/s (2.36 rad/s)

J4 300 °/s (5.24 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±144°

J3 ±136°

J4 ±540°

EQUIPPE WITH:

FANUC R30iA CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT

Sold FOB Imlay City, MI 48444. Freight is arranged and paid by the buyer. R.A.B. Industries can assist with loading and can recommend carriers. Contact us at 586-752-0090 for assistance coordinating transport.
