USED 2016 CHIAO SHENG A50TNCPB
Overview
Description
Chiao Sheng A50TNCPB, Used, 2016, S/N 161226 924B
Specifications
| Capacity | 2" | 50.8 mm |
|---|
This used Chiao Sheng A50TNCPB (2016) is a unit available from R.A.B. Industries. It is equipped with the nan controller.

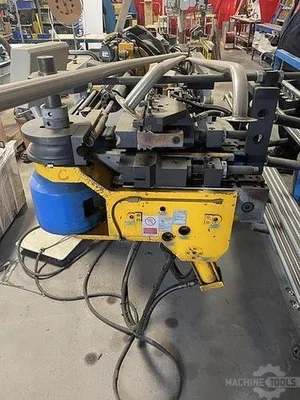

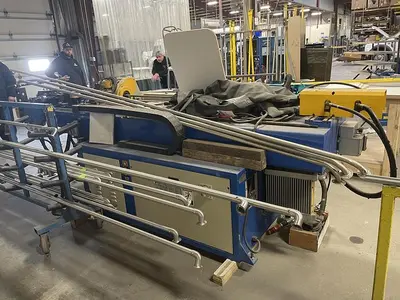

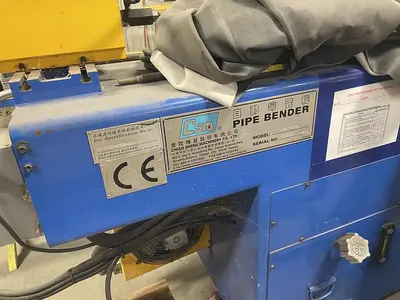

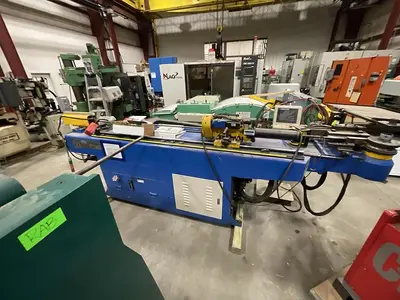

1-USED CHIAO SHENG TWO AXIS A50TNCPB SEMI AUTOMATIC 2" TUBE BENDER

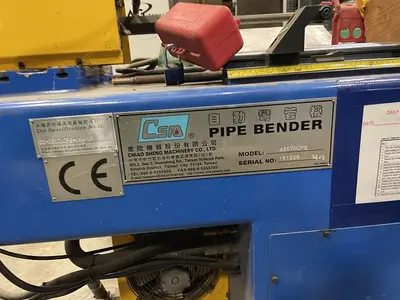

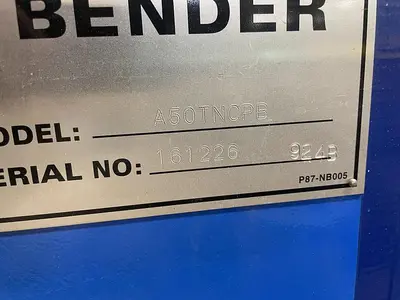

SERIAL NUMBER 161226 924B
DATE OF MFG 2017
STK#104786
=====================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
It is very suitable to the flexible production with less quantity, especially for the components which need multi bends on one tube. It is much more affordable than CNC 3 axes machine, nevertheless it is capable of multi- bends job as well.
1.Touch screen PLC control with graphic display for friendly use and easy operation. Program is with storage of 100sets x 10 bends/set.
2.
(1) Feeding axis –adjust and fasten the position blocks manually as required.
(2) Rotating axis - servo motor drove and with digital programming.
(3) Bending axis – hydraulics drove and with digital programming.
3. In auto mode, the machine will automatically do the tube rotation and bending after operator move the carriage to the right position.
Specification : MACHINE MANUFACTURED IN TAIWAN
1. Max. bending capacity OD * WT: 50x3.0mm.
2. Useful mandrel length: 2100 mm.
Chiao Sheng Machinery Co., Ltd.
Taiwan
General Info A50TNC-PB Hydraulic NC Tube Bender
Hydraulic NC Tube bender 50mm size
Semi-automatic 3 axis tube bender

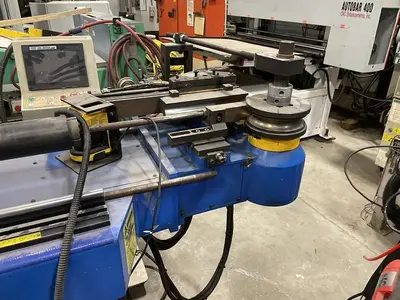

Hydraulic driven chain C-Axis (Bend Arm)
Collet (B-axis) : Rotation by servo motor

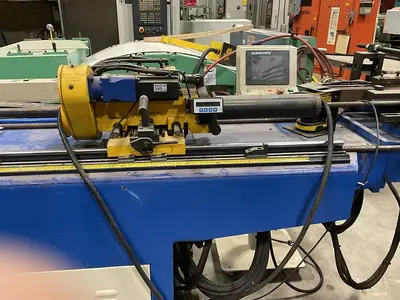

Manual driven carriage (Y-axis) with optional Digital Read Out (DRO)
Pressure die assist (Follower Die)

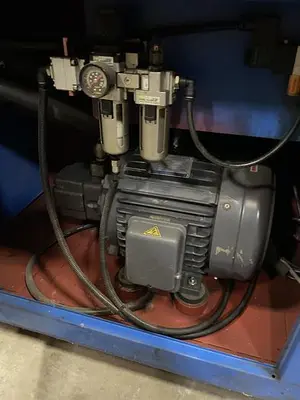

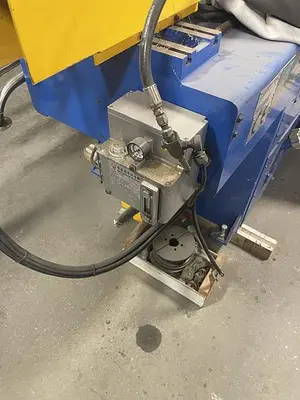

Includes an air cooled hydraulic systems
Includes a set of mechanical stops

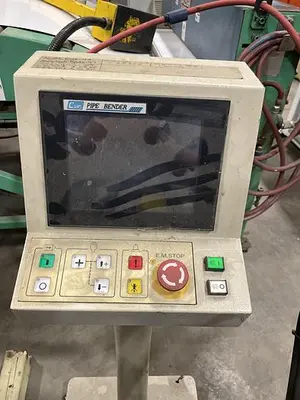

PLC controller with 10″ touch screen display
Memory storage of up to 1,000 part programs

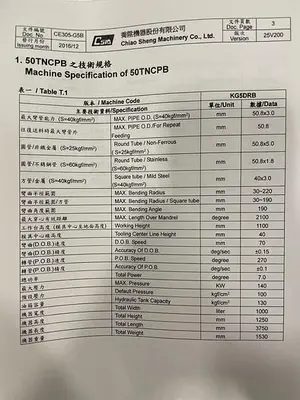

Specifications: A50TNC-PB Hydraulic NC Tube Bender
A50TNC-PB-specs
