USED 2002 FANUC FANUC ARCMATE 50IB

FANUC Arcmate 50iB Robot, RJ3iB Control, Used, 2002

This used FANUC Arcmate 50iB (2002) is a robot available from R.A.B. Industries. It is equipped with the RJ3iB controller and 6-axis configuration.

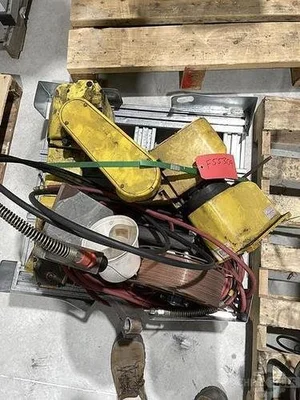

1-USED FANUC ARCMATE 50iB 6 AXIS MIG WELDING ROBOT WITH RJ3iB CONTROLLER

SERIAL NUMBER F55309

DATE OF MFG 11/2002

STK#104781

===============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

This FANUC ARC Mate 50iB is a six-axis robot engineered to offer versatility in a simple package. A tabletop welder with a low 47kg mass, the ARC Mate 50iB RJ-3iB is designed to perform high-speed arc welding applications. The 50-iB RJ3iB is a highly flexible automated robot that mounts to any surface – the floor, ceiling or at an angle. This plasma welding robotic arm is electric servo-driven for maximum performance during smaller applications. Additionally, the ARC Mate 50iB’s compact body takes space efficiency to new levels. This mini is fast and reliable, offering a horizontal reach of 856mm, allowing it to reach confined spaces easily.

Robot Specifications:

Axes: 6

Payload: 3kg

H-Reach: 856mm

Repeatability: ±0.04mm

Robot Mass: 47kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 140 °/s (2.44 rad/s)

J2 150 °/s (2.62 rad/s)

J3 160 °/s (2.79 rad/s)

J4 400 °/s (6.98 rad/s)

J5 330 °/s (5.76 rad/s)

J6 480 °/s (8.38 rad/s)

Robot Motion Range:

J1 ±160°

J2 +150° - 35°

J3 +165° - 125°

J4 ±190°

J5 ±120°

J6 ±360°

Applications:

Arc Welding Robots

Welding Automation Robots

Sanding Robots

Grinding Robots

Shielded Metal Arc Welding Robots

Plasma Welding Robots

Plasma Cutting Robots

Laser Cutting Robots

Equipped with:

Fanuc Arcmate 50iB

Fanuc RJ3iB Controller

Fanuc Robot RCC Cables

EE Connection

Lincoln Power wave F355i Mounted on Cabinet Mig welding power supply
