USED 2013 FANUC FANUC M900IA/350
Overview
Description

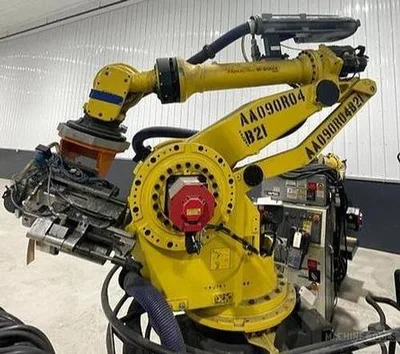

FANUC M900iA/350 Robot, R30iA Control, Used, 2013
Specifications
This used FANUC M900iA/350 (2013) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller and 6-axis configuration.
1-USED FANUC M900iA/350 6 AXIS CNC ROBOT WITH R30iA CONTROLLER
EQUIPPED WITH WEBER SHEET METAL SCREW GUN
MACHINE SERIAL NUMBER F136091
DATE OF MFG. 04/2013
STK#104742
===================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
Specifications:
Axes: 6
Payload: 350kg
V-Reach 2650
H-Reach: na
Repeatability: ±0.3mm
Robot Mass: 1720kg
Structure: Articulated
Robot Motion Speed:
J1 100 °/s (1.75 rad/s)
J2 95 °/s (1.66 rad/s)
J3 95 °/s (1.66 rad/s)
J4 105 °/s (1.83 rad/s)
J5 105 °/s (1.83 rad/s)
J6 170 °/s (2.97 rad/s)
Robot Motion Range:
J1 ±360°
J2 ±150°
J3 ±223°
J4 ±720°
J5 ±250°
J6 ±720°
Applications:
Material Handling Robots
Pick and Place Robots
Deburring Robots
Router Robots
Press Tending Robots
Machine Tending Robots
MECHANICAL WEIGHT 1720 KG
MOUNTING METHOD FLOOR, CEILING, ANGLE
EQUIPPED WITH:
FANUC R30iA CONTROLLER
FANUC 30 METER ROBOT CONNECTION CABLES
FANUC COLOR TEACH PENDANT
WEBER SHEET METAL SCREW GUN
THE M900iA SERIES ROBOT IS ENGINEERED FOR PRECISE, VERY HIGH PAYLOAD/HIGH SPEED
OPERATION. THE M900iA SERIES IS A SIX AXIS, ELECTRIC SERVO DRIVEN FAMILY OF ROBOTS
DESIGNED FOR A VARIETY OF MANUFACTURING AND SYSTEM PROCESSES.
