USED 2014 FANUC FANUC R2000IB/210F

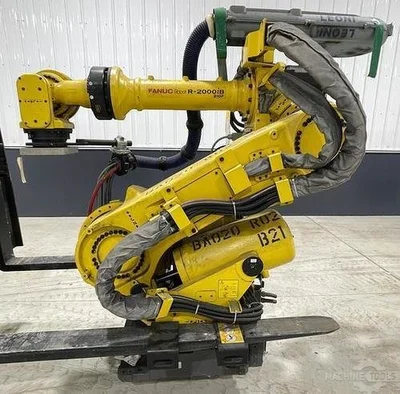

FANUC R2000iB/210F Robot, R30iA Control, Used, 2014

This used FANUC R2000iB/210F (2014) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller and 6-axis configuration.

1- USED FANUC R2000iB/210F 6 AXIS CNC ROBOT WITH R30iA CONTROLLER
MACHINE SERIAL NUMBER F144819
DATE OF MFG. 01/2014
STK#104732
=======================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

THIS UNIT HAS BEEN CLEANED AND TESTED AT OUR FACILITY.

Specifications:

Axes: 6
Payload: 210kg
H-Reach: 2655mm
Repeatability: ±0.3mm
Robot Mass: 1240kg
Structure: Heavier Payload

Robot Motion Speed:
J1 95 °/s (1.66 rad/s)
J2 90 °/s (1.57 rad/s)
J3 95 °/s (1.66 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 190 °/s (3.32 rad/s)

Robot Motion Range:
J1 ±180°
J2 +75° - 60°
J3 +230° - 132°
J4 ±360°
J5 ±125°
J6 ±360°

Applications

- Resistance Welding Robots
- Spot Welding Robots
- Injection Molding Robots
- Machine Loading Robots
- Machine Tending Robots
- Material Handling Robots
- Assembly Robots
- Fiberglass Cutting Robots

EQUIPPED WITH:
FANUC R30iA CONTROLLER
FANUC ROBOT CONNECTION CABLES
FANUC COLOR TEACH PENDANT

ARM 1 CUSTOMER CONNECTION CABLE

ARP 1 CUSTOMER CONNECTION CABLE
