USED 2018 FANUC LR MATE 200ID

FANUC LR Mate 200ID Robot, R30iB Control, Used, 2018

This used FANUC LR Mate 200ID (2018) is a robot available from R.A.B. Industries. It is equipped with the R30iB controller and 6-axis configuration.

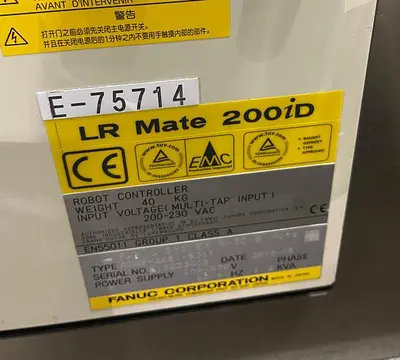

1-FANUC LR MATE 200iD 6 AXIS CNC ROBOT WITH R30iB MATE CONTROLLER

SERIAL NUMBER E75714

HOURS SHOWN ON METER: 5,965

DATE OF MFG. 2018

STK#104714

======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

This FANUC LR Mate 200iD is the latest, compact, mini robot that has the approximate reach and size of a human arm. This helps to minimize interference with peripheral devices and allows operation in narrow spaces. It is known as the lightest mechanical unit in its class and has multiple mounting options which helps with installation flexibility.

Robot Specifications:

Axes: 6

Payload: 7.00kg

H-Reach: 717.00mm

Repeatability: ±0.0200mm

Robot Mass: 25.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 450 °/s (7.85 rad/s)

J2 380 °/s (6.63 rad/s)

J3 520 °/s (9.08 rad/s)

J4 550 °/s (9.6 rad/s)

J5 545 °/s (9.51 rad/s)

J6 1000 °/s (17.45 rad/s)

Robot Motion Range:

J1 +340° - 360°

J2 ±245°

J3 ±420°

J4 ±380°

J5 ±250°

J6 ±720°

Robot Applications:

Assembly Robots

Deburring Robots

Machine Loading Robots

Order Picking Robots

Polishing Robots

Vision Robots

3D Laser Vision Robots

EQUIPPED WITH:

FANUC R30IB CONTROLLER

FANUC LRMATE 200ID ROBOT

FANUC ROBOT CONNECTION CABLES

FANUC COLOR TEACH PENDANT

CONVEYOR
