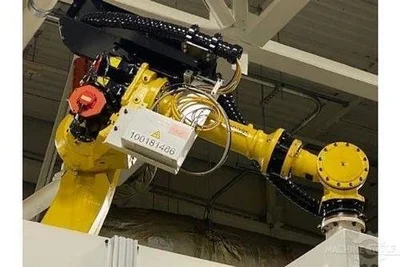

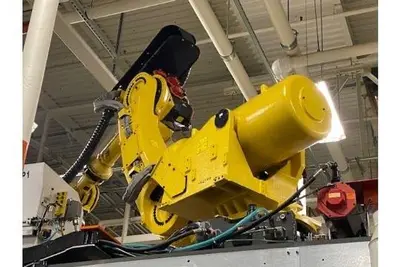

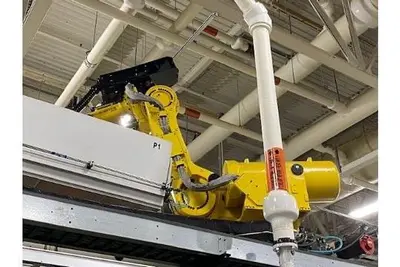

USED 2014 FANUC FANUC R2000IB/200R

This used FANUC R2000IB/200R (2014) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller.

1 - USED FANUC R2000iB/200R WITH R30iA CONTROLLER

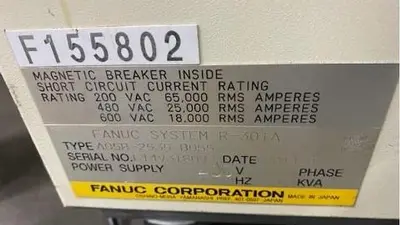

SERIAL NUMBER 155802

DATE OF MFG 09/2014

STK# 104640

===================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

THE FANUC R2000iB/200R IS A RACK MOUNTED INDUSTRIAL ROBOT FROM THE WORLD-RENOWED R2000 SERIES OF ROBOTS BY FANUC. THIS SIX AXIS ROBOT IS IDEAL FOR A VARIETY OF APPLICATIONS, INCLUDING AUTOMATED MATERIAL HANDLING, SPOT WELGING, MACHINE TENDING, PICK AND PLACE, AND MORE.

AXES: 6

PAYLOAD: 200KG

REACH: 3095MM

REPEATABILITY: +/- 0.3MM

ROBOT MASS: 1540KG

STRUCTURE: ARTICULATED

ROBOTS SPEEDS:

J1: 90 DEGREES A SECOND

J2: 85 DEGREES A SECOND

J3: 95 DEGREES A SECOND

J4: 120 DEGREES A SECOND

J5: 120 DEGREES A SECOND

J6: 190 DEGREES A SECOND

ROBOT MOTION RANGE:

J1: 360 DEG.

J2: 185 DEG.

J3: 365 DEG.

J4: 720 DEG.

J5: 250 DEG.

J6: 720 DEG.

Applications:

Spot Welding Robots

Injection Molding Robots

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Palletizing Robots

Pick and Place Robots

Fiberglass Cutting Robots

Foundry Robots

EQUIPPED WITH:

FANUC R30iA CONTROLLER

FANUC ROBOT CONNECTION CABLES

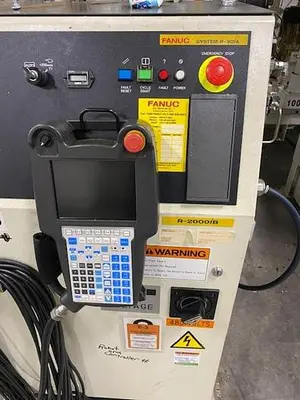

FANUC COLOR TEACH PENDANT

FANUC EE CONNECTIONS

FANUC ARP1 CONNECTION

FANUC ARM1 CONNECTION

F.O.B. TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444
