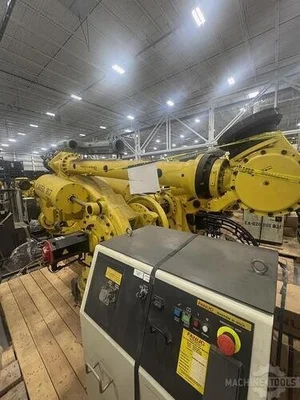

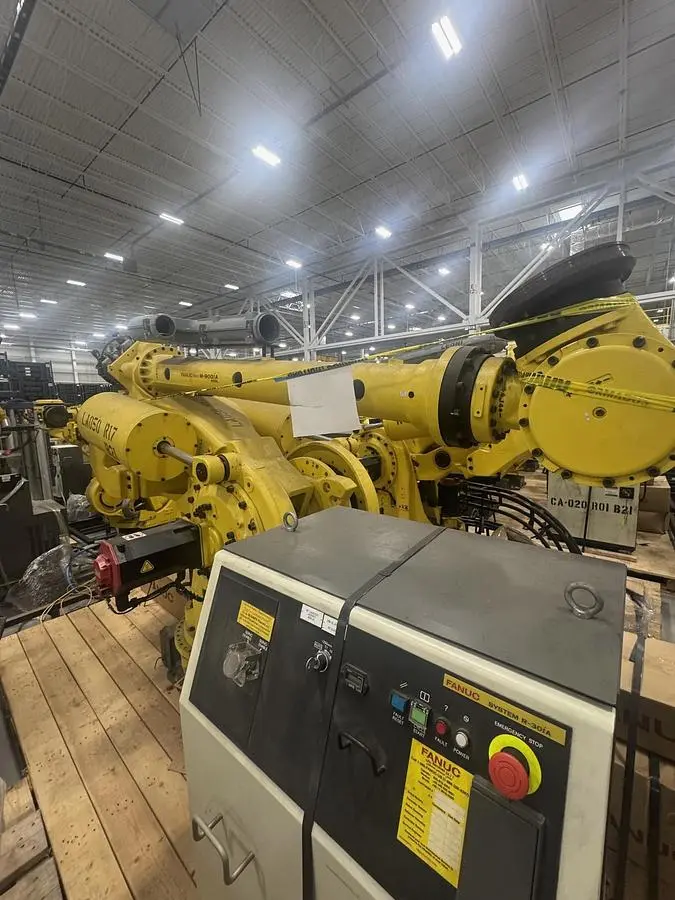

USED 2014 FANUC M-900IA/400L

FANUC M900iA/400L Robot, R-30iA Control, Used, 2014

This used FANUC M900iA/400L (2014) is a robot available from R.A.B. Industries. It is equipped with the R-30iA controller and 6-axis configuration.

1-USED FANUC M900iA/400L WITH R30iA CONTROLLER

RECERTIFIED BY FANUC NOT USED SINCE.

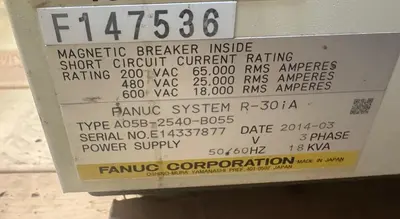

SERIAL NUMBER F147536

DATE OF MFG: 03/2014

FANUC MECHANICAL PART NUMBER A05B-1328-B213

FANUC CONTROL PART NUMBER A05B-2540-B055

HOURS ON MTR: 5214

STK#104596

===========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

These FANUC M-900iA/400L's are a long reach, floor mounted industrial robot that is ideal for heavy material handling applications. The M-900iA/400L can handle up to 400kg! Its IP67 rated wrist is designed to perform in even the harshest environments. It offers very reliable servo drives that help to provide your production line with the very most uptime and productivity.

Robot Specifications:

Axes: 6

Payload: 400.00kg

H-Reach: 3625.00mm

Repeatability: ±0.5000mm

Robot Mass: 3150.00kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 80 °/s (1.4 rad/s)

J2 80 °/s (1.4 rad/s)

J3 80 °/s (1.4 rad/s)

J4 100 °/s (1.75 rad/s)

J5 100 °/s (1.75 rad/s)

J6 160 °/s (2.79 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±154°

J3 ±160°

J4 ±720°

J5 ±244°

J6 ±720°

EQUIPPED WITH:

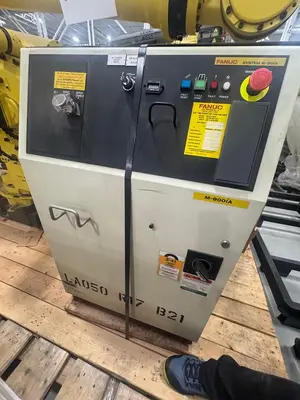

R30iA CONTROLLERS

TEACH PENDANTS

CABLES
