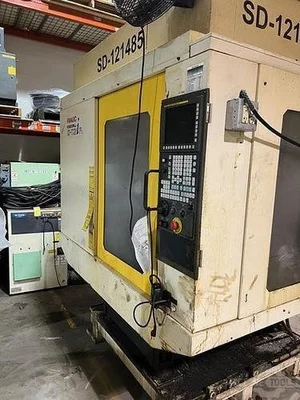

FANUC Robodrill T21iF Rotary Table, 31i Control, Used, 2008
| X | 19.7" | 500.38 mm |
| Y | 15.7" | 398.78 mm |
| Z | 13" | 330.2 mm |
This used FANUC Robodrill T21iF (2008) is a rotary table available from R.A.B. Industries. It is equipped with the nan controller.
1-USED FANUC ROBODRILL MODEL T-21iF CNC VERTICAL MACHINING CENTER
SERIAL NUMBER: P083WH524
DATE OF MFG. MARCH 2008
STK#104659
=================================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE
SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER.
CATALOG SPECIFICATIONS:
MACHINE CONTROL: FANUC 31I-A5 CNC CONTROL
TABLE SIZE: 25.6" X 15.7"
MACHINE TRAVELS (X/Y/Z): 19.7"/ 15.7" / 13"
SPINDLE TO TABLE DISTANCE: 5.9" TO 18.9" PLUS 4.25" FOR RISER
SPINDLE CENTER TO COLUMN DISTANCE: 15.748"
TABLE CAPACITY: 440 LBS
SPINDLE TAPER: BT-30 BIG PLUS TAPER SPINDLE
SPINDLE SPEEDS: 100 TO 10,000 RPM
RAPID TRAVERSE RATE (X/Y/Z): 2125 IPM
MAXIMUM CUTTING FEED RATE: 0.039 TO 1181 IPM
TOOL CHANGER STYLE: BI-DIRECTIONAL HIGH-SPEED TOOL TURRET
TOOL CHANGER CAPACITY: 21 STATIONS
TOOL CHANGE TIME: .9 / 1.1 SECONDS TOOL TO TOOL
MAX TOOL LENGTH: 9.8"
MAX TOOL WEIGHT: 6.6 LBS.
SPINDLE DRIVE: 7.3 / 5 HP (10 MIN RATING / CONTINUOUS RATING)
APPROX WEIGHT OF MACHINE W/4TH AXIS 2250 KG (4,878 LBS)
