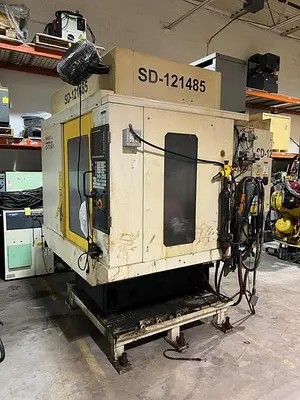

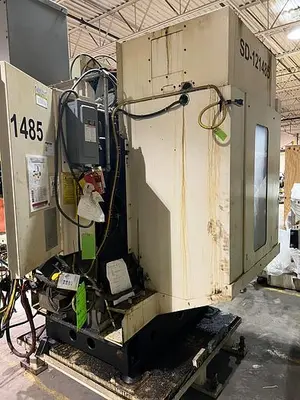

USED 2008 FANUC ROBODRILL T21IF

This used FANUC Robodrill T21iF (2008) is a rotary table available from R.A.B. Industries. It is equipped with the nan controller.

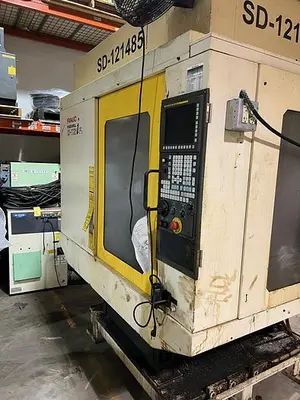

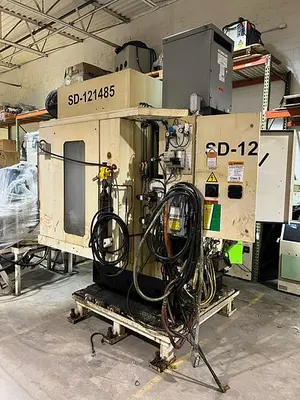

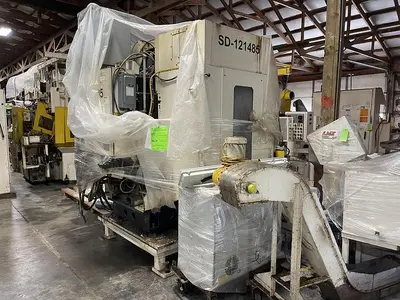

1-USED FANUC ROBODRILL MODEL T-21iF CNC VERTICAL MACHINING CENTER

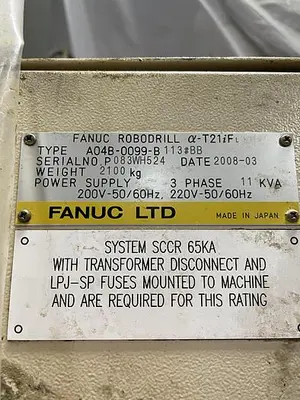

SERIAL NUMBER: P083WH524

DATE OF MFG. MARCH 2008

STK#104659

=================================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE

SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER.

CATALOG SPECIFICATIONS:

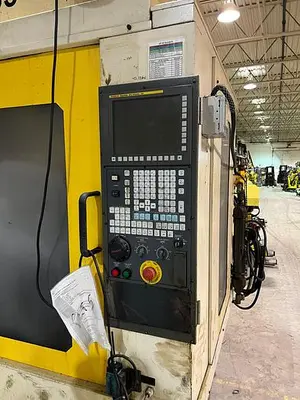

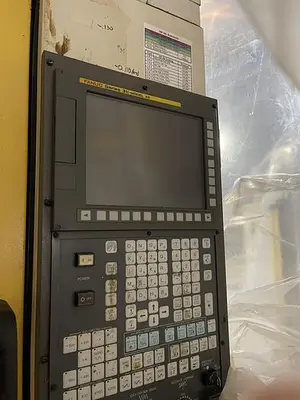

MACHINE CONTROL: FANUC 31I-A5 CNC CONTROL

TABLE SIZE: 25.6" X 15.7"

MACHINE TRAVELS (X/Y/Z): 19.7"/ 15.7" / 13"

SPINDLE TO TABLE DISTANCE: 5.9" TO 18.9" PLUS 4.25" FOR RISER

SPINDLE CENTER TO COLUMN DISTANCE: 15.748"

TABLE CAPACITY: 440 LBS

SPINDLE TAPER: BT-30 BIG PLUS TAPER SPINDLE

SPINDLE SPEEDS: 100 TO 10,000 RPM

RAPID TRAVERSE RATE (X/Y/Z): 2125 IPM

MAXIMUM CUTTING FEED RATE: 0.039 TO 1181 IPM

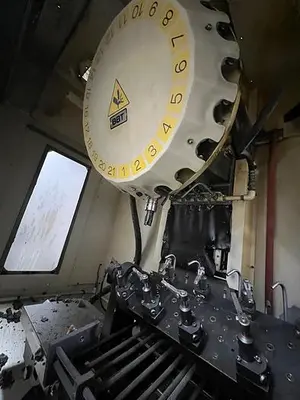

TOOL CHANGER STYLE: BI-DIRECTIONAL HIGH-SPEED TOOL TURRET

TOOL CHANGER CAPACITY: 21 STATIONS

TOOL CHANGE TIME: .9 / 1.1 SECONDS TOOL TO TOOL

MAX TOOL LENGTH: 9.8"

MAX TOOL WEIGHT: 6.6 LBS.

SPINDLE DRIVE: 7.3 / 5 HP (10 MIN RATING / CONTINUOUS RATING)

APPROX WEIGHT OF MACHINE W/4TH AXIS 2250 KG (4,878 LBS)
