USED 2012 KUKA KR60 JET

This used KUKA KR60 Jet (2012) is a robot available from R.A.B. Industries. It is equipped with the KRC4 controller and 6-axis configuration.

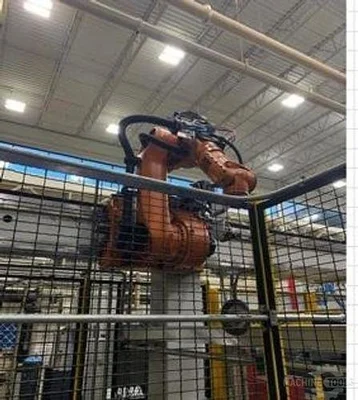

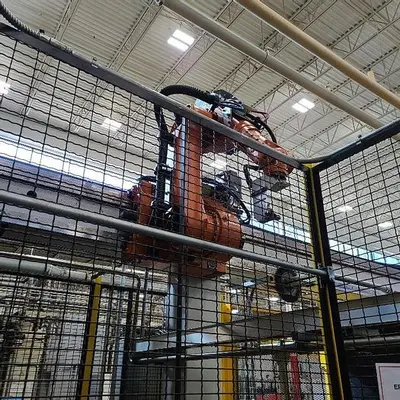

1-USED KUKA KR60 JET DUAL ARM GANTRY ROBOT SYSTEM WITH KRC4 CONTROLLERS

DATE OF MFG. 12/2012

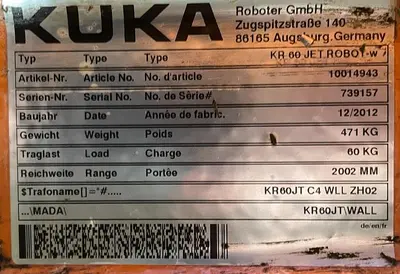

SERIAL NUMBERS 739157, 739158

STK#104441

===================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Robot Specifications:

Axes: 6 Axis 1 is the linear travel on the gantry beam

Payload: 60.00kg

H-Reach: 2002.00mm

Repeatability: ±0.1500mm

Robot Mass: 435.00 kg

Structure: GantryMounting:Inverted

Robot Motion Speed:

J13.2 m/s

J2120 °/s (2.09 rad/s)

J3166 °/s (2.9 rad/s)

J4260 °/s (4.54 rad/s)

J5245 °/s (4.28 rad/s)

Robot Motion Range:

J2+158° - 120°

J3±350°

J4±119°

J5±350°

EQUIPPED WITH:

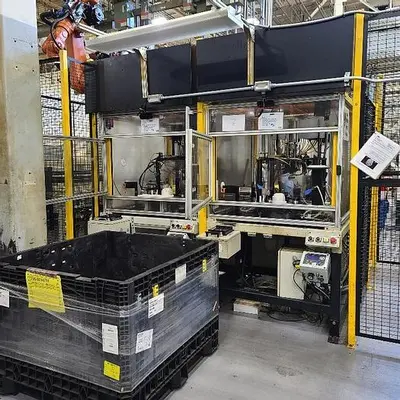

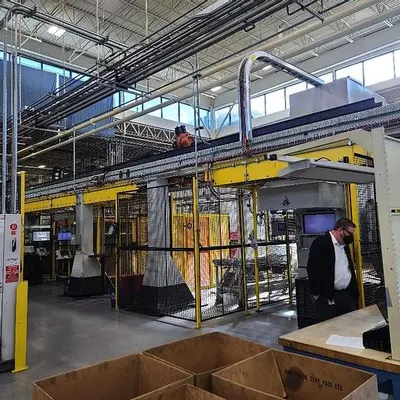

KUKA GANTRY AND SUPPORTING FABRICATED COLUMNS

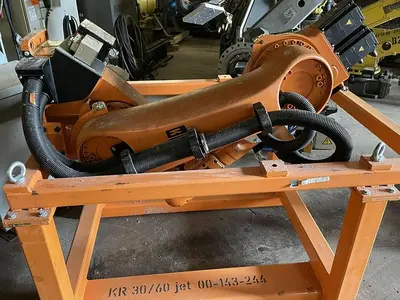

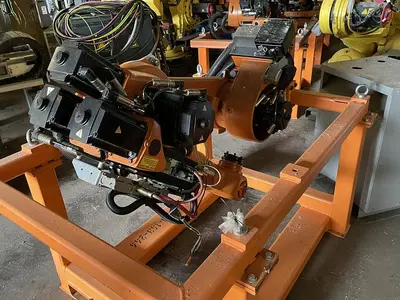

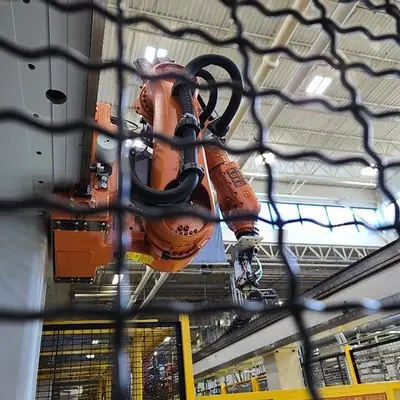

KUKA KR60 JET ROBOT

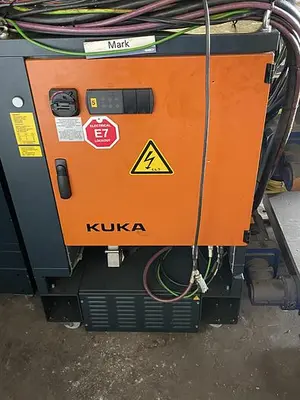

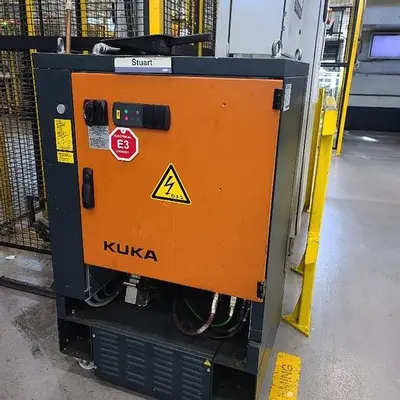

KUKA KRC4 CONTROLLERS

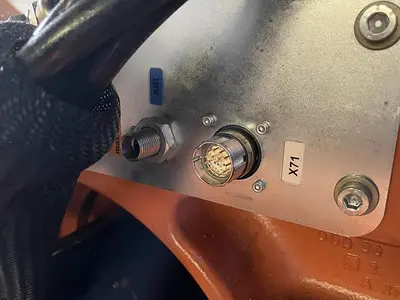

KUKA ROBOT CONNECTION CABLES

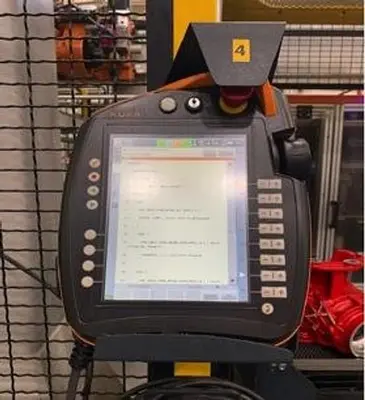

KUKA TEACH PENDANT
