KUKA KR60 Jet Robot, KRC4 Control, Used, 2012, S/N 739155
| # Axis | 6 | 6 |
| Payload | 60 kg | 132.3 lb |
This used KUKA KR60 Jet (2012) is a robot available from R.A.B. Industries. It is equipped with the KRC4 controller and 6-axis configuration.

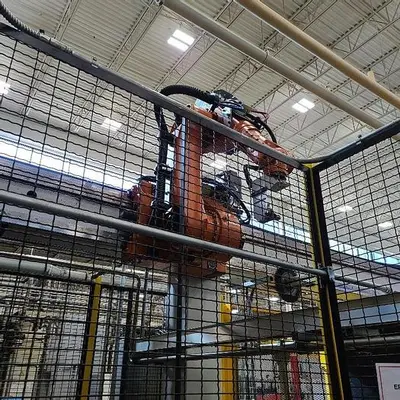

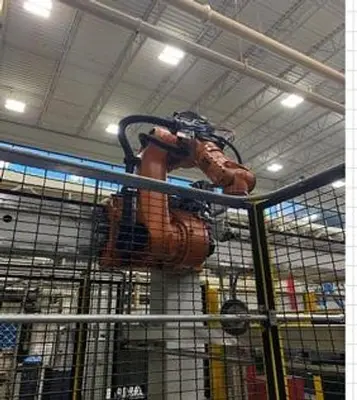

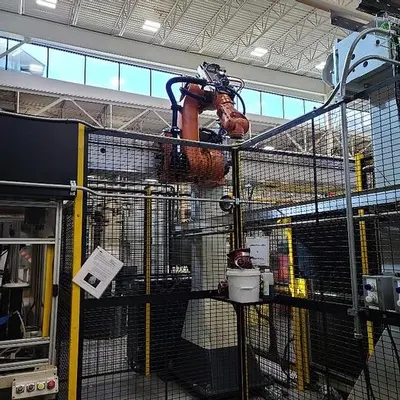

1-USED KUKA KR60 JET DUAL ARM GANTRY ROBOT SYSTEM WITH KRC4 CONTROLLERS
DATE OF MFG. 12/2012

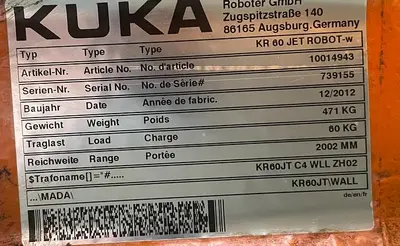

SERIAL NUMBER 739155, 739156
STK#104442
===================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
Robot Specifications:
Axes: 6 Axis 1 is the linear travel on the gantry beam
Payload: 60.00kg
H-Reach: 2002.00mm
Repeatability: ±0.1500mm
Robot Mass: 435.00 kg
Structure: GantryMounting:Inverted
Robot Motion Speed:
J13.2 m/s
J2120 °/s (2.09 rad/s)
J3166 °/s (2.9 rad/s)
J4260 °/s (4.54 rad/s)
J5245 °/s (4.28 rad/s)
Robot Motion Range:
J2+158° - 120°
J3±350°
J4±119°
J5±350°
EQUIPPED WITH:

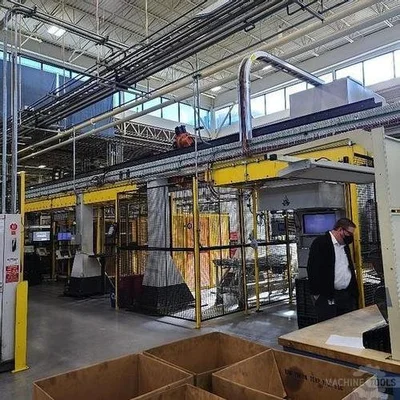

KUKA GANTRY AND SUPPORTING FABRICATED COLUMNS

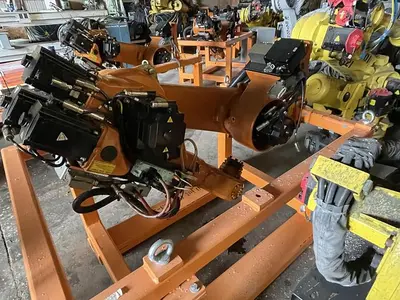

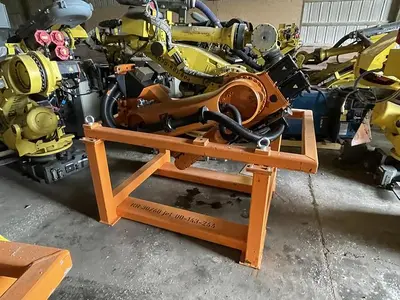

KUKA KR60 JET ROBOTS

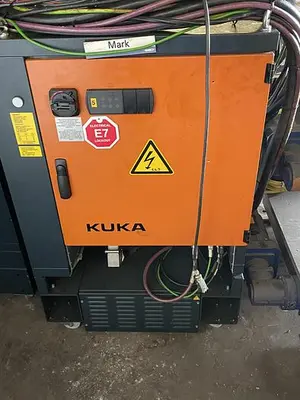

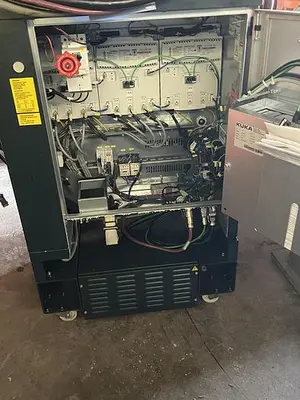

KUKA KRC4 CONTROLLERS

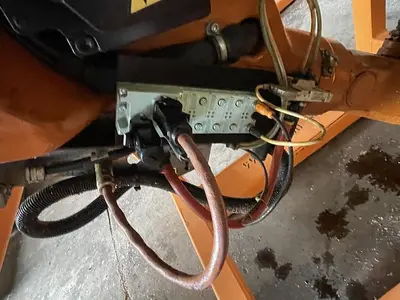

KUKA ROBOT CONNECTION CABLES
KUKA TEACH PENDANTS
