USED 2001 FANUC M-16I

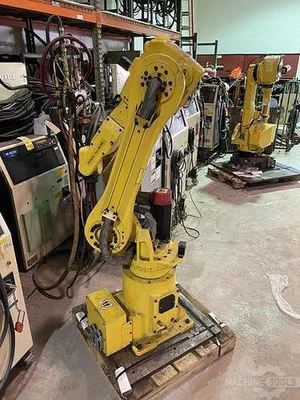

FANUC M16i Robot, RJ3 Control, Used, 2001, S/N F49590

This used FANUC M16i (2001) is a robot available from R.A.B. Industries. It is equipped with the nan controller and 6-axis configuration.

1-USED FANUC M16i 6 AXIS CNC ROBOT WITH RJ3 CONTROLLER 16KG X 1605MM HIGH REACH
SERIAL NUMBER F49590
DATE OF MFG. 08/2001
STK#104430
===========================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

The FANUC M-16i robot provides an intelligent automation solution for a variety of applications. When it comes to material handling and removal, loading and unloading, assembly, and even water jet cutting, the M16i model is fast and effective.

Robot Specifications:

Axes: 6

Payload: 16.00kg

H-Reach: 1605.00mm

Repeatability: ±0.0800mm

Robot Mass: 270.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 140 °/s (2.44 rad/s)

J2 140 °/s (2.44 rad/s)

J3 140 °/s (2.44 rad/s)

J4 330 °/s (5.76 rad/s)

J5 330 °/s (5.76 rad/s)

J6 450 °/s (7.85 rad/s)

Robot Motion Range:

J1 ±165°

J2 +162° - 78°

J3 +285° - 170.5°

J4 ±200°

J5 ±140°

J6 ±450°

Robot Applications:
Dispensing Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Pick and Place Robots

EQUIPPED WITH:
FANUC RJ3 CONTROLLER
FANUC ROBOT CONNECTION CABLES
TEACH PENDANT
