USED 2007 FANUC FANUC M6IB/2HS

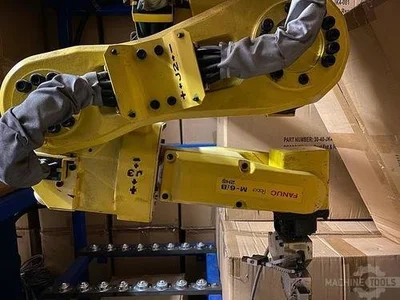

FANUC M6iB/2HS Robot, R30iA Control, Used, 2007, S/N F82532

This used FANUC M6iB/2HS (2007) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller and 6-axis configuration.

1-USED FANUC M6iB/2HS 6 AXIS CNC ROBOT WITH RJ3iC(R30iA) CONTROLLER

SERIAL NUMBER F82532

DATE OF MFG. 04/2007

STK# 104264

===================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

This FANUC M-6iB/2HS comes from the latest-generation family of small robots that has 6 degrees of freedom, +/-0.08 mm repeatability, and a 2 kg payload. There are a variety of features on this robot that make it capable of tackling any application that requires dexterity, reliability, and high speeds. It is perfect for completing machine tending, material handling, assembly, picking and packing, material removal, cleanroom operations, testing and sampling, and dispensing. The M-6iB/2HS is a high speed variant, with greater throughput, of the M-6iB series, yet it maintains the same compact size, slim wrist, and small footprint in the series. Because the FANUC M6iB/2HS has a lighter payload, its speeds are much faster, as it can be used for rapid pick and place operations.

Robot Specifications:

Axes: 6

Payload: 2.00kg

H-Reach: 951.00mm

Repeatability: ±0.0800mm

Robot Mass: 135.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 200 °/s (3.49 rad/s)

J2 200 °/s (3.49 rad/s)

J3 260 °/s (4.54 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 1200 °/s (20.94 rad/s)

Robot Motion Range:

J1 ±340°

J2 ±250°

J3 ±310°

J4 ±380°

J5 ±280°

J6 ±720°

Robot Applications:

Dispensing Robots

Machine Tending Robots

Material Handling Robots

Pick and Place Robots

Material Removal Robots

Order Picking Robots

EQUIPPED WITH:

FANUC RJ3iC (R30iA) CONTROLLER

FANUC CABLES

FANUC TEACH PENDANT
