USED 1995 PEMAMEK PEMA 5000 CR
Overview
Description
Pemamek Pema 5000 CR Positioner, Used, 1995, S/N H-4101
Specifications
| Max Weight Capacity | 11,240 lb | 5,098.4 kg |
|---|
This used Pemamek Pema 5000 CR (1995) is a positioner available from R.A.B. Industries. It is equipped with the nan controller.
WHAT AN AWESOME GIANT POSTIONER! HUGE-MONGUS! VERY LITTLE USE! WILL NEED TO BE RE-CONTROLLED.

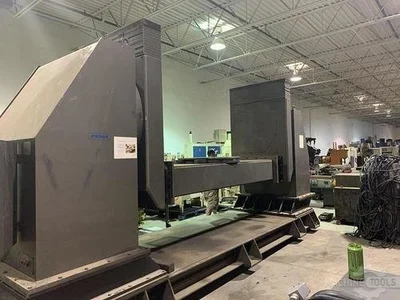

1-USED PEMAMEK 5000-CR 2 AXIS SERVO DRIVEN DROP CENTER WELDING POSITIONER
OR FOR MACHINING APPLICATIONS
SERIAL NUMBER H4101
DATE OF MFG. 1995
STK#104114
======================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
MANUFACTURED IN FINLAND
ROTATING TABLE DIAMETER
MAX. LOADING CAPACITY 11,240 LBS
MAX. TABLE ROTATION SPEED 15 DEGREES/SEC.
MAX. TABLE ROTATION TORQUE 4,056 FT. LBS.
MAX. TRUNNION TILTING TORQUE 11,064 FT. LBS.
MAX. TRUNNION TILTING SPEED 6 DEGREES/SEC.
MAX. TRUNNION TILTING ANGLE +/- 180 DEGREES
MAX. WELDING CURRENT 1,200 AMP
WEIGHT 33,070 LBS.
DIMENSIONS 111.22" TALL X 74.01" WIDE X 230.4" LONG
