USED PRATT & WHITNEY M-1835

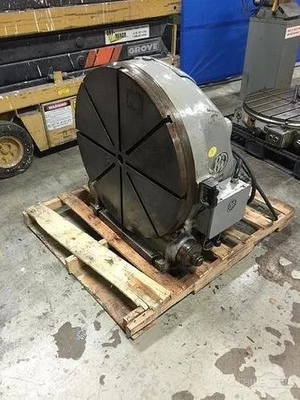

Pratt & Whitney M-1835 30" Vertical Rotary Table, Used

This used Pratt & Whitney M-1835 30" Vertical Rotary Table (nan) is a rotary table available from R.A.B. Industries. It is equipped with the nan controller.

1-USED PRATT & WHITNEY MODEL M-1835 30" VERTICAL ROTARY TABLE
SERIAL NUMBER 0115
STK# 103215
===============================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

WORKING SURFACE DIAMETER 30"
MAX. RECOMMENDED WEIGHT OF WORK PIECE 1,200 LBS
HEIGHT BASE TO CENTER HOLE 19 1/8"
CENTER HOLE IN TABLE NO.40MM TAPER
NUMBER OF T-SLOTS 8 FOR 5/8" BOLTS
TABLE GRADUATIONS DEGREES
TABLE GRADUATIONS READ TO 1 MINUTE
TABLE DIAL VERNIER GRADUATIONS READ TO 2 SECONDS
MOTOR, 3 PHASE REVERSIBLE TYPE 1/2 HP
APPROX. NET WEIGHT 1745 LBS
