USED 2003 FUJI HM-30T1

Fuji HM-30T1 Lathe, Used, 2003, S/N 13891

This used Fuji HM-30T1 (2003) is a lathe available from R.A.B. Industries. It is equipped with the nan controller.

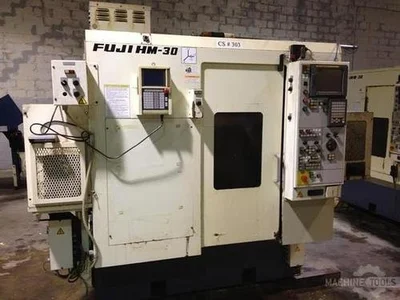

1-USED FUJI HM-30T1 SINGLE SPINDLE CNC LATHE WITH GANRY LOAD/UNLOAD AND MILLING.

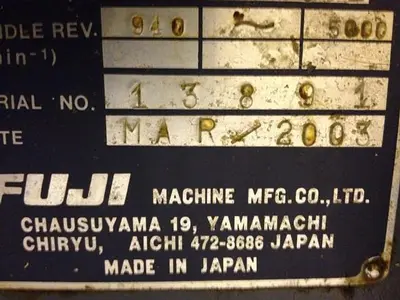

MACHINE SERIAL NUMBER 13891

DATE OF MFG. 3/2003

STK 102883

==========================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE

WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

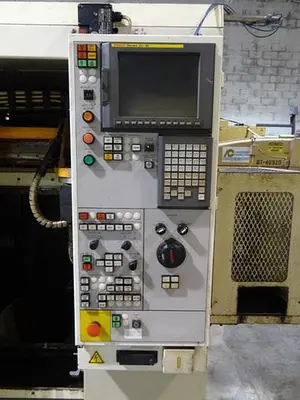

CNC Control Fanuc 21i-M

Recommended Work Envelope 7.9" x 3.5" Max.

Turning Diameter 16.5"

Spindle Diameter 3.94"

Spindle Bore 2.2"

Spindle Speed 940-5,000 rpm

Spindle Motor 10HP Continuous - 15 HP 30 MINS

Swing 16.53"

Turning Diameter 5.9" - 16.53"

Turning Length 4.72" - 11.02"

X Axis Travel 8.86"

Z Axis Travel 18.31"

Rapid Traverse 944 IPM

Turret 8 Position Chuck Size 8"

Equipped With:

Chip Conveyor

Coolant

Machine Size: 5'9" x 6'3" x 7'5"

Machine Weight: 7,700 lbs.
