USED 2001 FANUC S500I

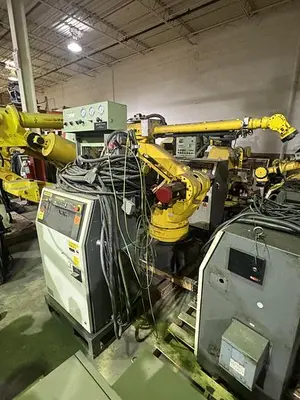

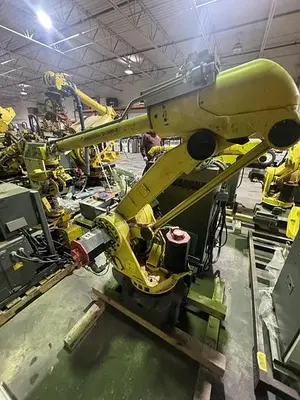

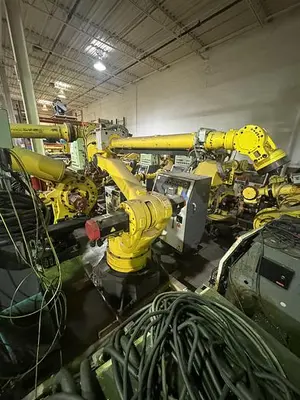

FANUC S500i Robot, RJ3 Control, Used, 2001, S/N F51424

This used FANUC S500i (2001) is a robot available from R.A.B. Industries. It is equipped with the nan controller and 6-axis configuration.

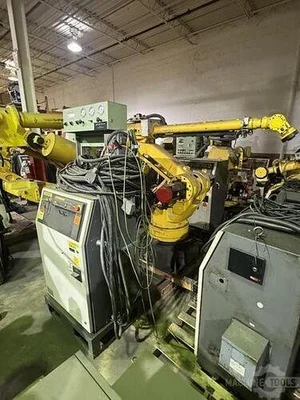

1-USED FANUC S500i 6 AXIS CNC ROBOT WITH RJ3 CONTROLLER
SERIAL NUMBER F51424

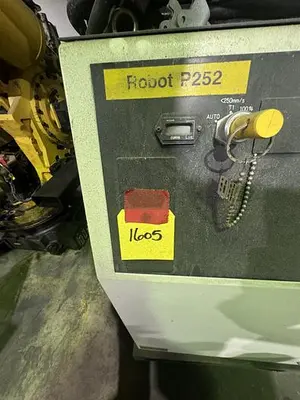

TAG 1605
DATE OF MFG. 08/2001

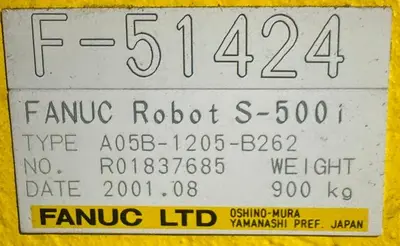

MECHANICAL ARM PART NO. A05B-1205-B262

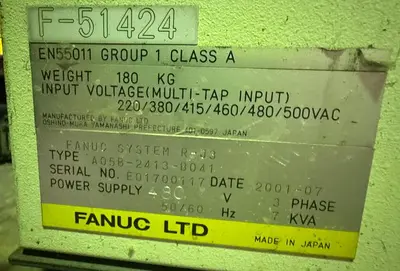

CONTROL PART NO. A05B-2413-B041
STK#103917
=========================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

HOURS SHOWN ON METER N/A

Robot Specifications:
Axes: 6
Payload: 15.00kg
H-Reach: 2739.00mm
Repeatability: ±0.2500mm
Robot Mass: 900.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed:
J1 90 °/s (1.57 rad/s)
J2 90 °/s (1.57 rad/s)
J3 320 °/s (5.59 rad/s)
J4 320 °/s (5.59 rad/s)
J5 320 °/s (5.59 rad/s)
J6 320 °/s (5.59 rad/s)

Robot Motion Range
J1 ±300°
J2 ±160°
J3 ±160°
J4 ±480°
J5 ±240°
J6 ±900°

EQUIPPED WITH:

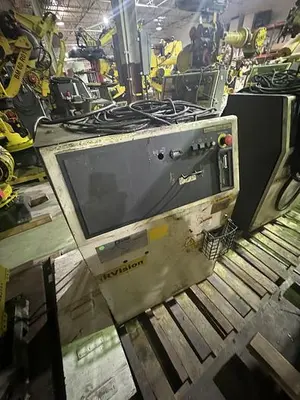

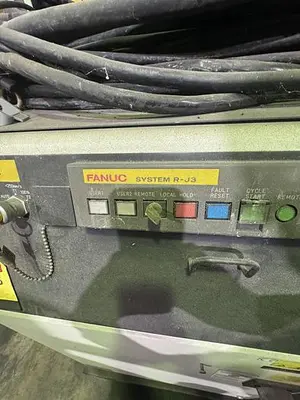

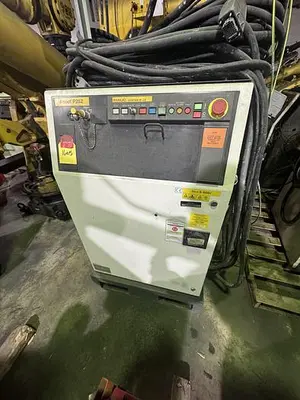

FANUC RJ3 CONTROLLER WEIGHT 180 KG

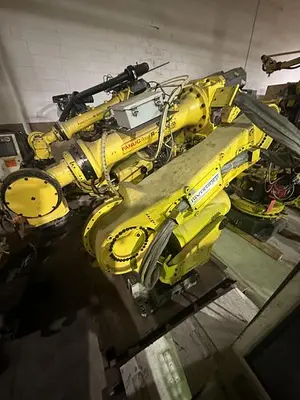

FANUC S500I MECHANICAL UNIT WEIGHT 900 KG
FANUC ROBOT CONNECTION CABLES
FANUC TEACH PENDANT

Robot Applications
Material Handling Robots
Pick and Place Robots
Bonding / Sealing Robots
Grinding Robots
Arc Welding Robots

large work envelope and a 15kg payload capacity make the FANUC S-500 able to perform a wide variety of industrial applications such as dispensing, material handling, welding, and parts transfer.

MOUNTING METHOD: FLOOR, CEILING, ANGLE
