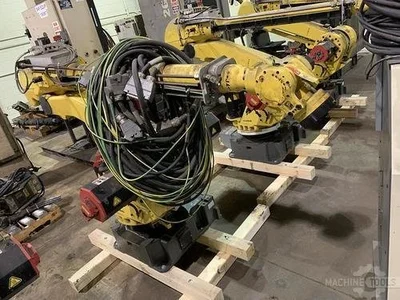

USED 2003 FANUC S500IB

This used FANUC S-500iB (2003) is a robot available from R.A.B. Industries. It is equipped with the RJ3iB controller and 6-axis configuration.

1-USED FANUC S-500iB 15KG X 2757MM REACH 6 AXIS CNC ROBOT
WITH 7TH & 8TH AXIS AUXILIARY DRIVES
SERIAL NUMBER F56196
DATE OF MFG. 01/2003
STK#103854
============================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

HOURS SHOWN ON METER 9,008.8

Robot Specifications:
Axes: 6
Payload: 15.00kg
H-Reach: 2757.00mm
Repeatability: ±0.1500mm
Robot Mass: 610.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed:
J1 170 °/s (2.97 rad/s)
J2 170 °/s (2.97 rad/s)
J3 200 °/s (3.49 rad/s)
J4 335 °/s (5.85 rad/s)
J5 360 °/s (6.28 rad/s)
J6 600 °/s (10.47 rad/s)

Robot Motion Range:
J1 ±160°
J2 +100° - 60°
J3 +149° - 119°
J4 ±240°
J5 ±120°
J6 ±450°

EQUIPPED WITH:
RJ3iB CONTROLLER
CABLES
TEACHPENDANT
7TH & 8TH AXIS AUXILIARY DRIVES

Robot Applications:
Dispensing Robots
Machine Loading Robots
Material Handling Robots
Material Removal Robots
Part Transfer Robots

You will like the 6-axis FANUC S-500iB is designed for high-speed smooth movements. The refined movement of the S-500iB R-J3iB, a result of RV speed reducers, is powered by brushless AC servo motors. Cables are routed through hollow joints on the S-500ib arm to reduce interference.

The FANUC S-500iB R-J3iB has a slender arm design that increases access to parts and eases installation. It can operate in many environments ranging from harsh to the traditional factory floor. The slender arm design improves robot repeatability and no robot modifications are required for upright, inverted, or wall-mountings.
