USED 2007 FANUC M-900IA/260L
Overview
Description

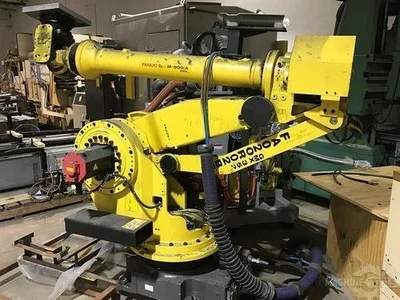

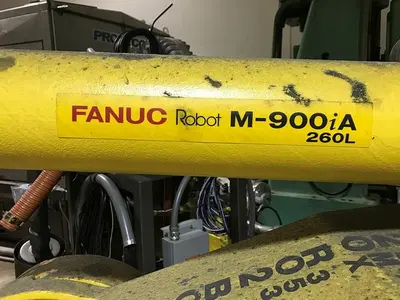

FANUC M900iA/260L Robot, R30iA Control, Used, 2007
Specifications
| # Axis | 6 | 6 |
|---|---|---|
| Payload | 260 kg | 573.2 lb |
This used FANUC M900iA/260L (2007) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller and 6-axis configuration.
1-USED FANUC M900iA/260L 6 AXIS CNC ROBOT WITH R30iA CONTROLLER
MACHINE SERIAL NUMBER F85575
DATE OF MFG. 7/2007
HOURS SHOWN ON METER 4,752
STK#103419
===================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
HOURS SHOWN ON METER 4,752
ROBOT SPECIFICATIONS:
Axes: 6
Payload: 260kg
H-Reach: 3100mm
Repeatability: ±0.3mm
Robot Mass: 1800kg
Structure: Articulated
Robot Motion Speed:
J1 100 °/s (1.75 rad/s)
J2 105 °/s (1.83 rad/s)
J3 95 °/s (1.66 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 200 °/s (3.49 rad/s)
Robot Motion Range:
J1 ±180°
J2 ±75°
J3 +90° - 121°
J4 ±360°
J5 ±125°
J6 ±360°
EQUIPPED WITH:
R30iA CONTROLLER
CABLES
TEACH PENDANT
THE M900iA SERIES ROBOT IS ENGINEERED FOR PRECISE, VERY HIGH PAYLOAD/HIGH SPEED
OPERATION. THE M900iA SERIES IS A SIX AXIS, ELECTRIC SERVO DRIVEN FAMILY OF ROBOTS
DESIGNED FOR A VARIETY OF MANUFACTURING AND SYSTEM PROCESSES.
