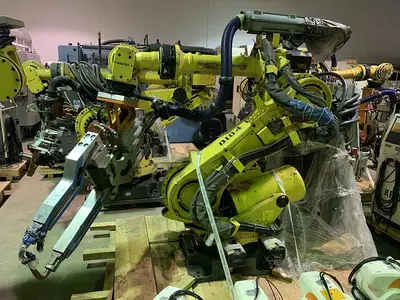

USED 2011 FANUC R-2000IB/210F

This used FANUC R2000iB/210F (2011) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller and 6-axis configuration.

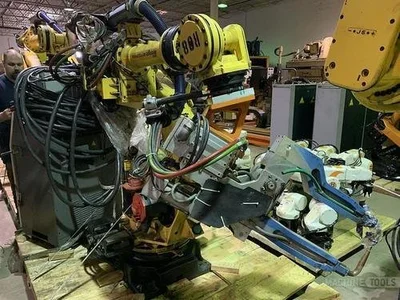

1-USED FANUC R2000iB/210F 6 AXIS CNC ROBOT WITH R30iA CONTROLLER
210KG X 2655MM REACH WITH ARO SERVO WELD GUN
MACHINE SERIAL NUMBER F111752
DATE OF MFG. 04/2011
STK# 103793
=======================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Robot Specifications:
Axes: 6
Payload: 210kg
H-Reach: 2655mm
Repeatability: ±0.3mm
Robot Mass: 1240kg
Structure: Heavier Payload

Robot Motion Speed:
J1 95 °/s (1.66 rad/s)
J2 90 °/s (1.57 rad/s)
J3 95 °/s (1.66 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 190 °/s (3.32 rad/s)

Robot Motion Range:
J1 ±180°
J2 +75° - 60°
J3 +230° - 132°
J4 ±360°
J5 ±125°
J6 ±360°

EQUIPPED WITH:

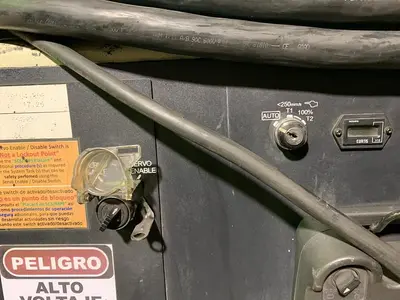

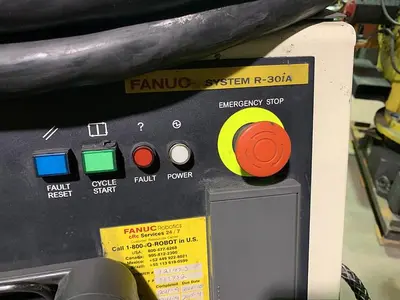

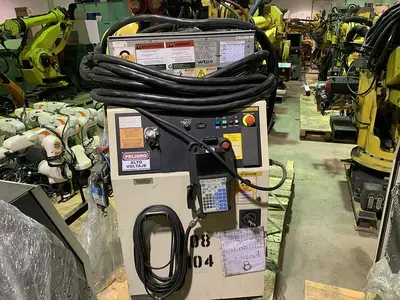

R30iA CONTROLLER
CABLES

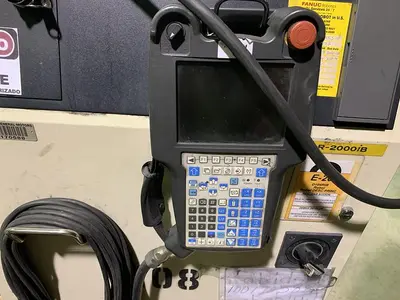

COLOR TEACH PENDANT
7TH AXIS DRIVE FOR SERVO WELD GUN

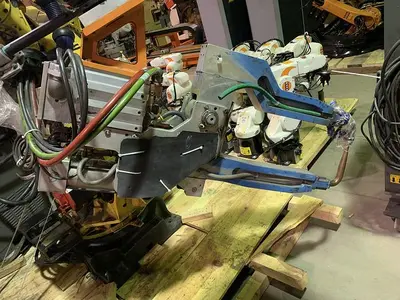

ARO SERVO WELD GUN

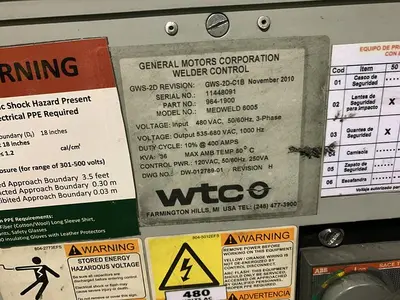

WTC AIR COOLED 400 AMP MODEL 6005 WELD CONTROLLER
DEVICE NET

The FANUC R-2000iB/210F is a floor-mounted robot with an extremely high payload, 2655 mm
horizontal reach, and six degrees of freedom. It is great for a variety of applications, such as
material handling, welding, dispensing, and material removal. The R-2000iB/210F has a slim
arm and wrist which helps it fit into confined and hard to reach places, giving manufacturers
even more versatility when planning their applications. This also helps to reduce interference
with system peripherals. Despite the slim arm, the R-2000iB/210F has a very large workenvelope
with the ability to reach overhead and behind. RAB has the robot in stock and ready for delivery.
