USED 1993 FADAL VMC-6030

This used Fadal 6030 (1993) is a machining center available from R.A.B. Industries. It is equipped with the nan controller.

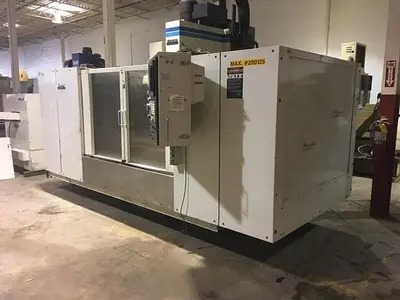

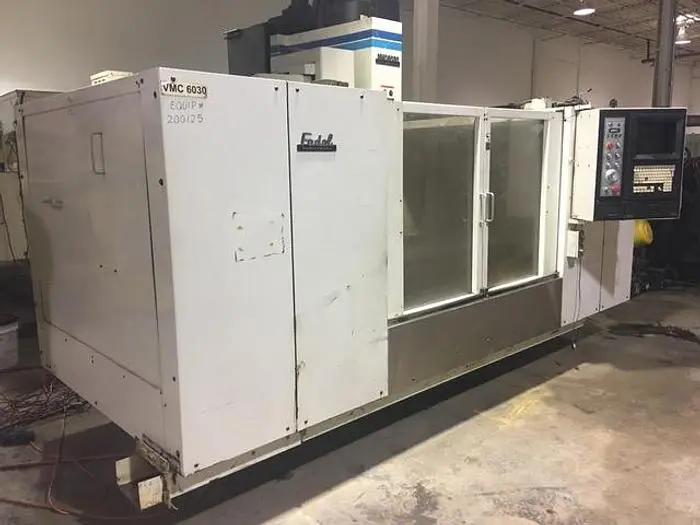

1-USED FADAL 6030 VHT VERTICAL MACHINING CENTER
MACHINE SERIAL NUMBER 9311232
DATE OF MFG. 1993
STK# 103534
===================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Table Size 62.5" x 30"
Floor to Table Surface 36"
T-Slots (No. x Width x Span) 5 x .687" x 5.5"
Cutting Feed Rate (X/Y/Z) .01-250 ipm / 375 @ 150%
Rapid Travel Rate (X/Y/Z) 400(X/Y/Z) ipm
Max. Weight on Table 4,120 lbs.
Axis Drive Motor (X/Y/Z) 5,000 lbs. thrust
Ball Screw Size 44mm dia. (X/Y) 38mm (Z)
Longitudinal (X Axis) Travel 60"
Latitudinal (Y Axis) Travel 30"
Vertical (Z Axis) Travel 30"
Spindle Nose to Table 5.5" - 35.5"
Spindle Center to Column Ways 30"
Main Motor - Spindle Horse Power 22.5 HP / 30 HP (option)
Spindle Torque 220 ft-lbs.
Accuracy, Axis Positioning ± .0003"
Accuracy, Axis Repeatability ± .00015"
Spindle Speed 10,000 rpm
Spindle Orientation Electromechanical
Spindle Taper No. 40
ATC, Number of Tools 21
ATC, Tool Selection Random / Bi-directional
Max. Tool Diameter 3"
(Without Adjacent Tools) (6")
Max. Tool Length 15"
Max. Tool Weight 15 lbs.
Machine Width x Depth 158" x 103"
Machine Max. Height 122"
Machine Weight 17,000 lbs.
Air Pressure Requirement (Momentary) 80-120 PSI, 15 SCFM
Power Requirement (3 Phase) 50/60 Cycle 240 VAC
Full Load Current 68 Amps
Power Requirement 28 KVA
Rating of Largest AC Motor 56 Amp @ 240 VAC

Equipped With:

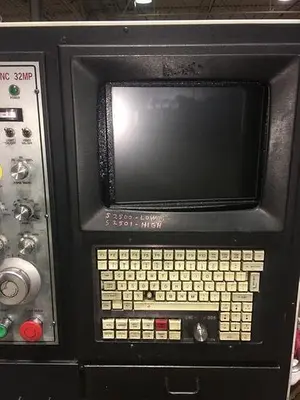

Fadal Multiprocessor CNC Control
Chip Conveyor
