USED 2011 FANUC M-900IA/350

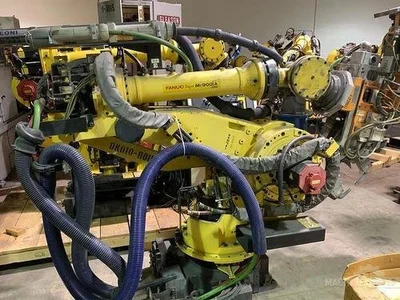

FANUC M900iA/350 Robot, R30iA Control, Used, 2011

This used FANUC M900iA/350 (2011) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller and 6-axis configuration.

1-USED FANUC M900iA/350 6 AXIS CNC ROBOT WITH R30iA CONTROLLER
EQUIPPED WITH ALUMINUM SPOT WELD GUN
MACHINE SERIAL NUMBER F113345
APPROX. DATE OF MFG. 07/2011
STK#103964
===================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

HOURS SHOWN ON METER:

Axes: 6
Payload: 350kg
V-Reach 2650
H-Reach: na
Repeatability: ±0.3mm
Robot Mass: 1720kg
Structure: Articulated

Robot Motion Speed

J1 100 °/s (1.75 rad/s)
J2 95 °/s (1.66 rad/s)
J3 95 °/s (1.66 rad/s)
J4 105 °/s (1.83 rad/s)
J5 105 °/s (1.83 rad/s)
J6 170 °/s (2.97 rad/s)

Robot Motion Range

J1 ±360°
J2 ±150°
J3 ±223°
J4 ±720°
J5 ±250°
J6 ±720°

MECHANICAL BRAKES ON ALL AXES
MECHANICAL WEIGHT 1720 KG
MOUNTING METHOD FLOOR, CEILING, ANGLE

EQUIPPED WITH:
R30iA CONTROLLER
CABLES
COLOR TEACH PENDANT
ALUMINUM SPOT WELD GUN

THE M900iA SERIES ROBOT IS ENGINEERED FOR PRECISE, VERY HIGH PAYLOAD/HIGH SPEED
OPERATION. THE M900iA SERIES IS A SIX AXIS, ELECTRIC SERVO DRIVEN FAMILY OF ROBOTS
DESIGNED FOR A VARIETY OF MANUFACTURING AND SYSTEM PROCESSES.
