USED 2006 KUKA KR6-ARC

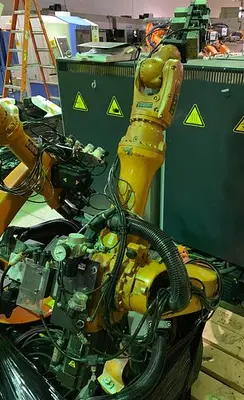

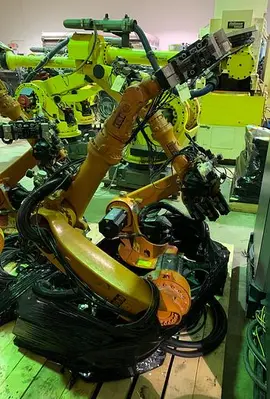

KUKA KR6 Arc Robot, KRC2 Control, Used, 2006, S/N 880252

This used KUKA KR6 Arc (2006) is a robot available from R.A.B. Industries. It is equipped with the KRC2 controller and 6-axis configuration.

1-USED KUKA MODEL KR6 ARC 6 AXIS CNC ROBOT
CAPACITY 6KG X 1611MM REACH

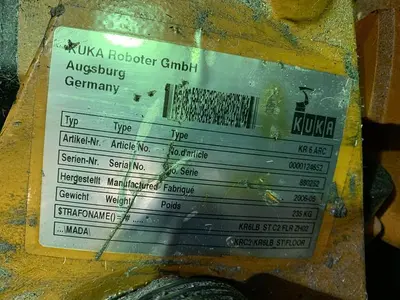

ROBOT SERIAL NUMBER 880252
DATE OF MFG. 05/2006

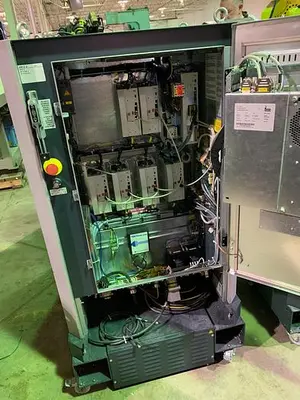

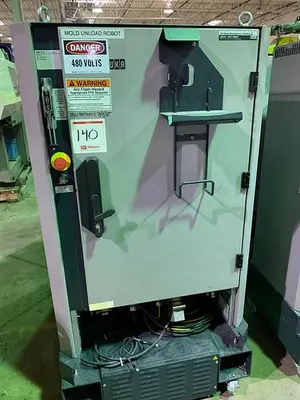

CONTROLLER KRC2-ed05
CONTROLLER SERIAL NUMBER 43278
STK#103729
==============================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Robot Specifications:
Axes: 6
Payload: 6.00kg
H-Reach: 1611.00mm
Repeatability: ±0.1000mm
Robot Mass: 235.00kg
Structure: Articulated
Mounting: Floor, Inverted

Robot Motion Speed:
J1 156 °/s (2.72 rad/s)
J2 156 °/s (2.72 rad/s)
J3 156 °/s (2.72 rad/s)
J4 343 °/s (5.99 rad/s)
J5 365 °/s (6.37 rad/s)
J6 662 °/s (11.55 rad/s)

Robot Motion Range:
J1 ±114°
J2 +35° - 155°
J3 +154° - 130°
J4 ±350°
J5 ±130°
J6 ±350°

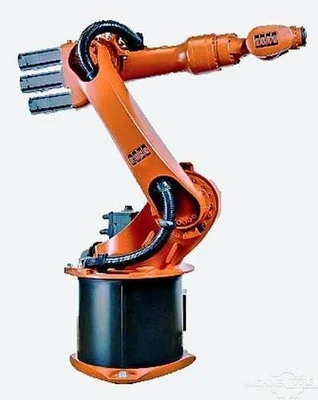

The Kuka 6 Arc industrial robot was designed for tough arc welding applications. Designed with 6 axes and a 6 kg maximum payload, the KR 6 Arc KR C2 can be either floor or ceiling mounted for easy installation in any automation shop.

THS ROBOT WAS MATERIAL HANDLING
