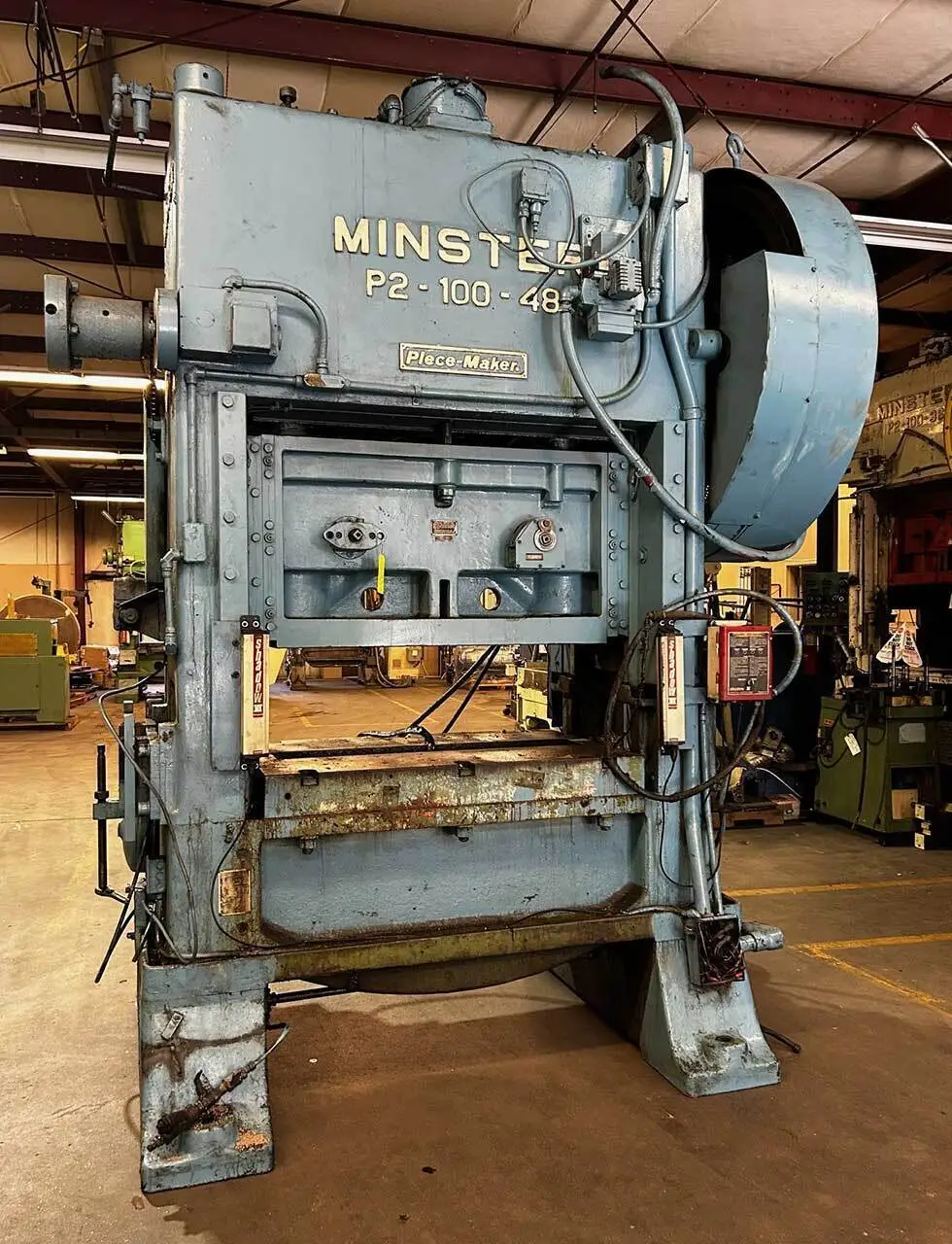

USED MINSTER P2-100-48

• Tonnage = 100
• Stroke = 4″
• Speed (Variable) = 70-200 SPM
• Slide Adjustment = 4″
• Shut HT (S.D.A.U.) = 17″
• Bed Area = 48″ x 31″
• Slide Area = 48″ x 18.5″
• Slide Window Width = 16″
• Motor = 15 HP
• Electric = 230/460V/60HZ/3PH
• Weight (Approx.) = 33,000 lbs

• Air Clutch and Brake
• Recirculating Lubrication System
• Dual Air Counterbalances
• Floor Mounted Operator Console
• 5″ Bolster Plate (Center Cutout: 42″ L-R x 6.5″ F-B)
• Eight Point Gibbing
• Tie Rod Construction
• (4) Isolation Mounts
