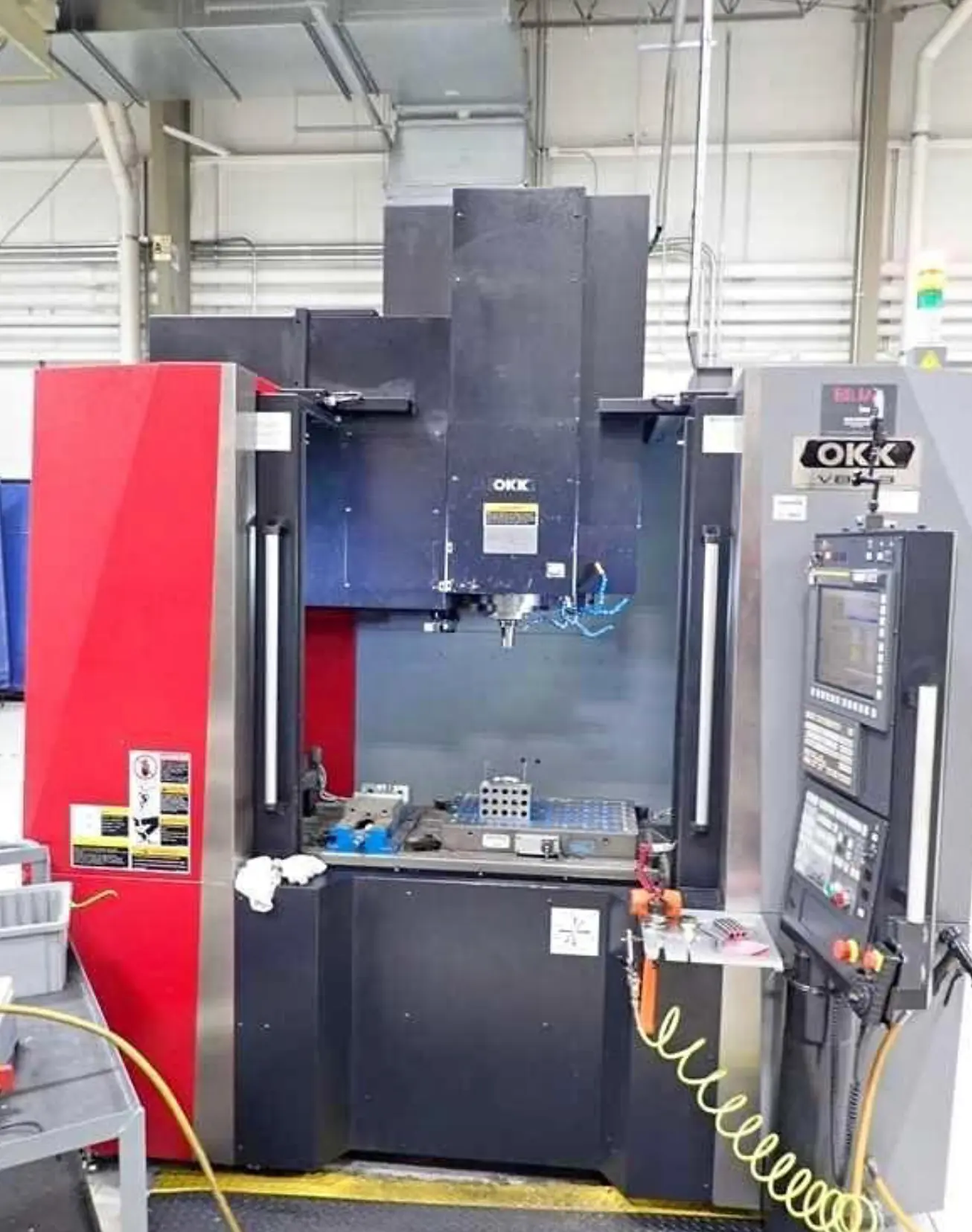

Used Vertical Machining Center, equipped with Fanuc 31i-B CNC, 20,000 RPM spindle, 30-station ATC, and 3-axis travel. Includes Blum Laser, spindle chiller, and more. Table size 49.61"x23.62", with 2,646 lbs capacity. Machine hours: 4579.
| X | 41" | 1,041.4 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 23" | 584.2 mm |
| Table-L | 49" | 1,244.6 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Axis................................................ 3
Table Size.......................................... 49.61" x 23.62"
Table Load Capacity................................. 2,646 LBS
X-Axis (Longitudinal Travel)........................ 41.34"
Y-Axis (Cross Travel)............................... 20.87"
Z-Axis (Vertical Travel)............................ 20.08"
Max/Min Clearance Tabletop to Spindle Nose.......... 25.98" / 5.91"
Feed Rates, All Axes................................ 0.04 - 787 IPM
Rapid Traverse Rate, All Axes........................ 787 IPM
Spindle Horsepower................................... 20 HP
Spindle Speed Range..................................100 - 20,000 RPM
Spindle Taper........................................ CAT 40 BIG+
Coolant Thru Spindle................................. yes
Automatic Tool Changer Capacity (ATC)................ 30
Machine Hours........................................ 4579
Electrics............................................ 220/3/60
Approximate Machine Dimensions....................... 99" x 99"
Approximate Machine Height........................... 115"
Approximate Machine Weight........................... 15,000 LBS
Fanuc 31i-B CNC Control with 512kb Memory, Hyper HQ Mode B and Custom Macro 600, 20000 Spindle RPM, 30-Station Automatic Tool Changer, CAT 40 Big+, Blum Laser for Part Setting, Over-Sized Roller Guide Ways, Fine Pitch Ball Screws, Linear Scale Feedback XYZ, Through Spindle Coolant, ChipBlaster High Pressure Coolant, Spindle Chiller, Chip Conveyor & Coolant System.
