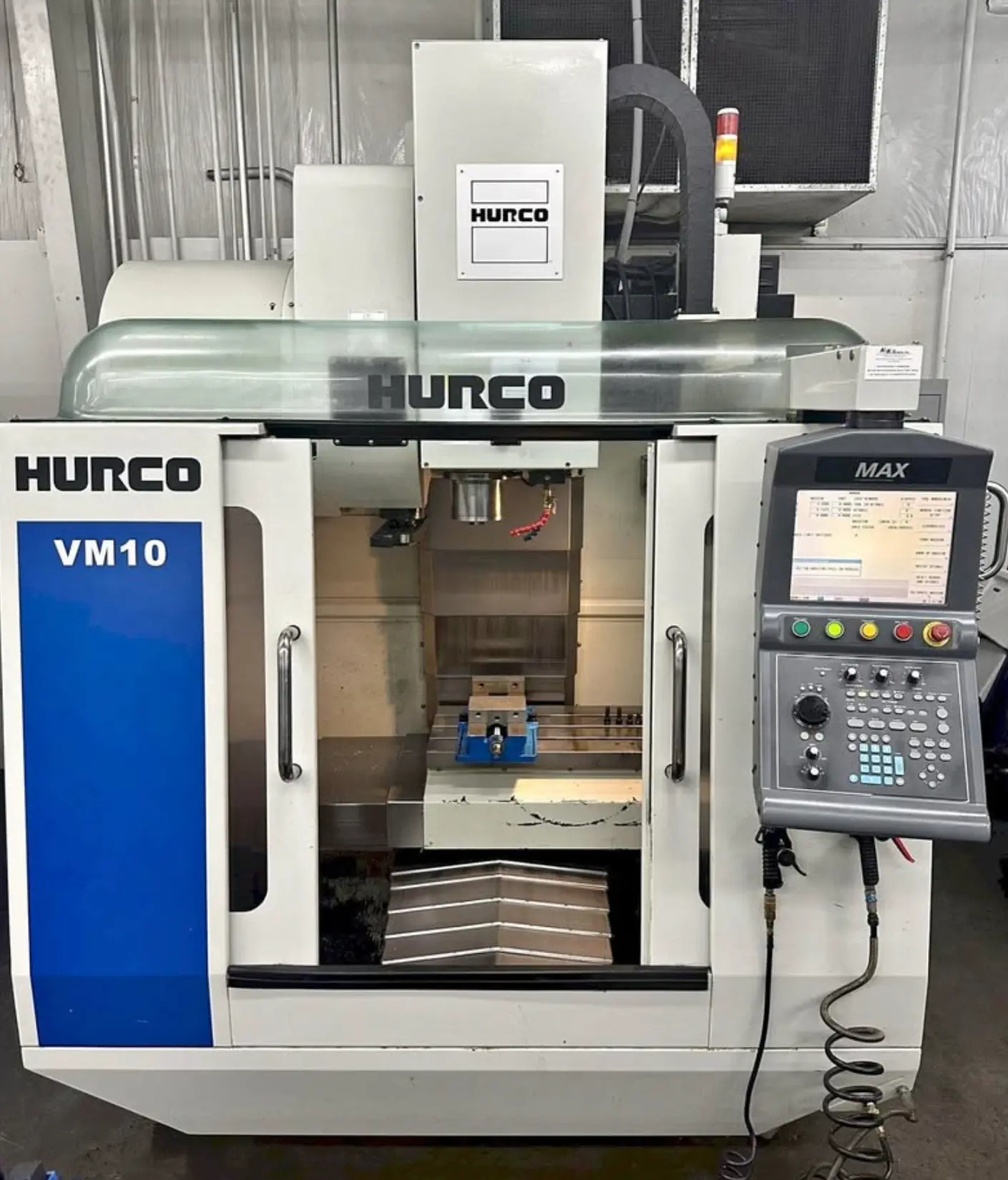

Vertical Machining Center, used. Features: 30"x14" table, 15 HP, 10,000 RPM, CAT 40, 20 station ATC, Hurco WinMax CNC Control, automatic lubrication, coolant system. Travel: X: 26", Y: 16", Z: 20".
| X | 26" | 660.4 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Table-W | 30" | 762 mm |
| Table-L | 14" | 355.6 mm |
| # Axis | 3 | 3 |
| Weight | 6,400 LBS | 6,400 LBS |
Table Size............................................... 30" x 14"
Table Load Capacity...................................... 750 LBS
X-Axis (Longitudinal Travel)............................. 26"
Y-Axis (Cross Travel).................................... 16"
Z-Axis (Vertical Travel)................................. 20"
Rapid Traverse Rate, All Axes............................ 945 IPM
Spindle Horsepower....................................... 15 HP
Max Spindle Speed........................................ 10,000 RPM
Spindle Taper............................................ CAT 40
Torque, Up To............................................ 54 FT-LBS @ 1,450 RPM
Automatic Tool Changer Capacity (ATC).................... 20
Automatic Tool Changer Style............................. Side-Mount Swing-Arm
Electrics................................................ 220/3/60
Approximate Machine Dimensions........................... 95" x118"
Approximate Machine Height............................... 100"
Approximate Machine Weight............................... 6,400 LBS
Hurco WinMax CNC Control, 10,000 RPM Spindle, 20 Station Automatic Tool Changer, Automatic Central Lubrication System, Coolant System.
