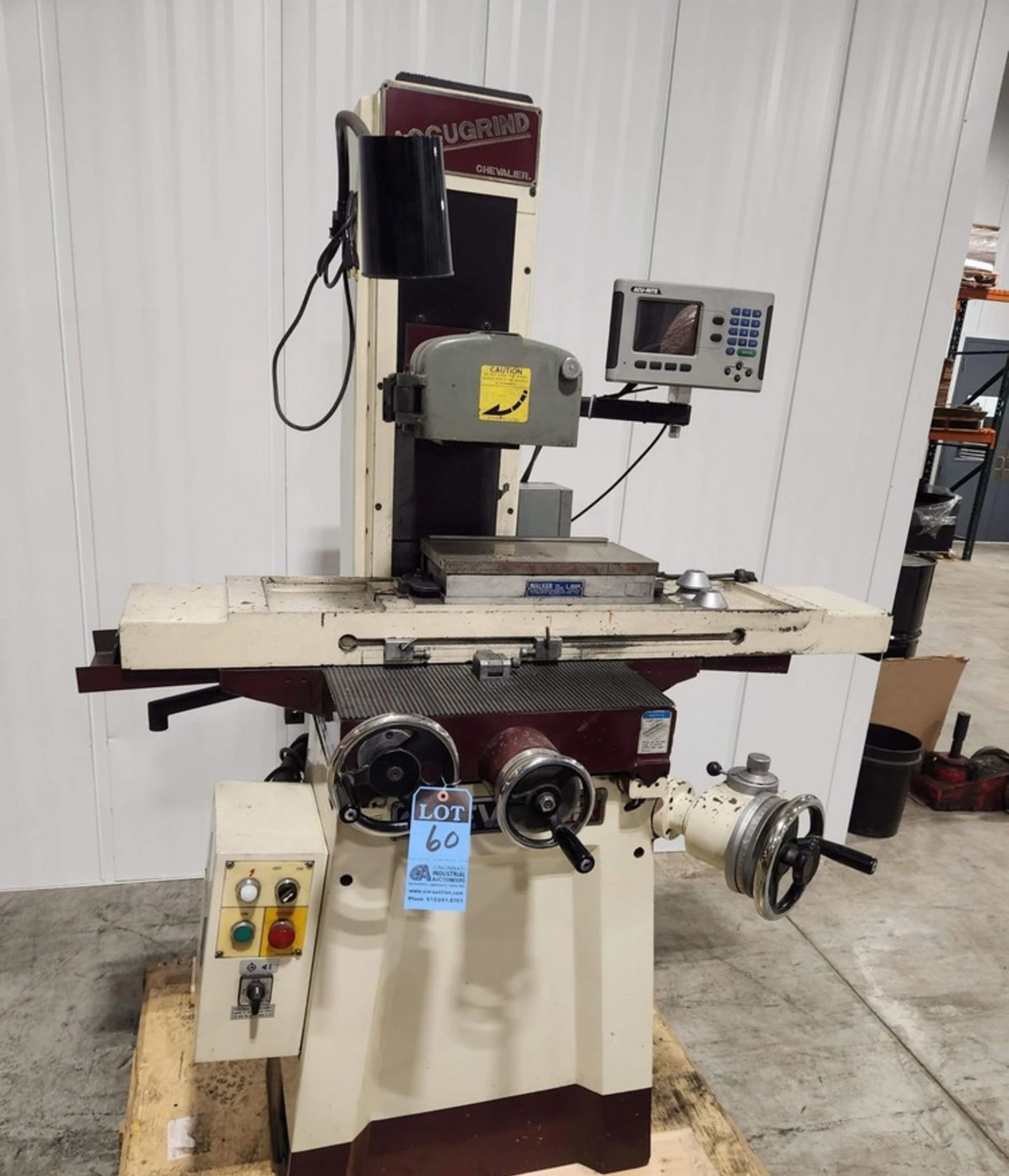

8" X 18" CHEVALIER "ACCUGRIND 818" HAND-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER - Walker electro-magnetic chuck - Acu-Rite digital readouts - 9" x 20" Grinding Capacity
| Table-W | 8" | 203.2 mm |
| Table-L | 19" | 482.6 mm |
| Horz/Vert | 'Horz' | 'Horz' |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 0.5" | 12.7 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Dimensions | 69'' x 54'' x 74'' | 69'' x 54'' x 74'' |
| Weight | 2310 LBS | 2310 LBS |
8" X 18" CHEVALIER "ACCUGRIND 818" HAND-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No A6882003, Model Accugrind 818
EQUIPPED WITH:
Acu-Rite 2-Axis Digital Readouts
8" x 16" Walker Electro-Magnetic Chuck w/Controls
Automatic Lubrication System
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 8" x 19"
Grinding Width Capacity, Maximum 9"
Grinding Length Capacity, Maximum 20"
Height Table to Spindle Center, Maximum 20"
Longitudinal Table Travel, Maximum 20"
Crossfeed Table Travel, Maximum 9"
Grinding Spindle Speed 3450 RPM
Grinding Wheel Diameter, Standard 8"
Grinding Wheel Width 0.5"
Grinding Wheel Hole Diameter 1.25"
Grinding Wheel Spindle Motor 2 HP
Electrical Requirements 220/440/3/60
Floor Space Required, L x W 69" x 54"
Overall Height 74"
Weight, Approximately 2310 LBS
NOTE: Replacement Price On This Grinder Is Over $24,000.00 With A
Chuck And Digital Readouts.
F.O.B. OUR WAREHOUSE
