USED SEVEN METAL CORP SMD35Z2+50DI PNC

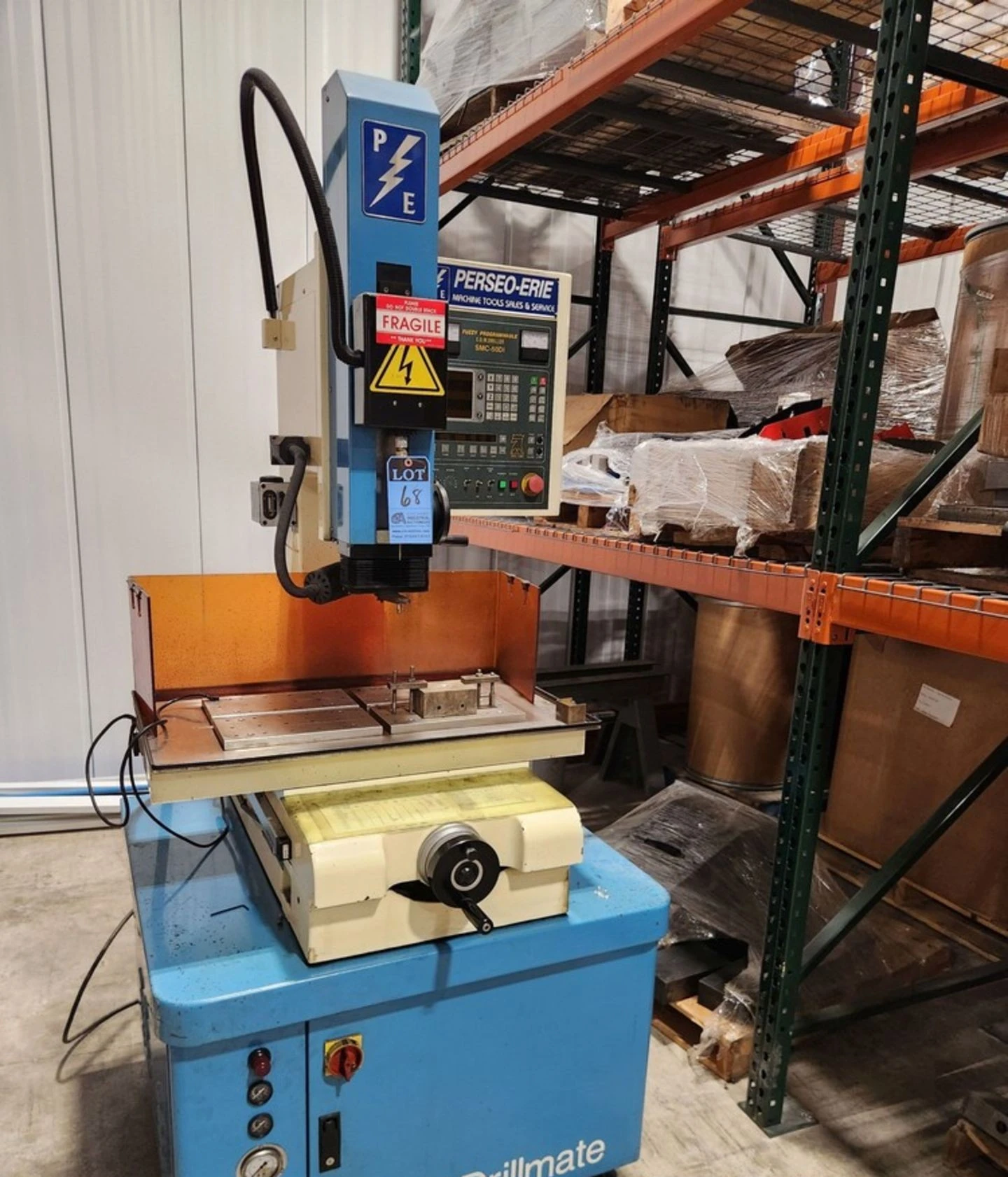

SMD35Z2+50DI PNS SEVEN METAL "EDM DRILLMATE" CNC EDM DRILLING MACHINE
New 2003, Serial No P1501, Model SMD35Z2+50DI PNC, Series Sevenspark

EQUIPPED WITH:
Perseo-Erie "SMC-50DI" Fuzzy Logic Programmable CNC Control
Work Table w/(4) 11.5" x 5.5" Predrilled Mounting Plates
Auto Machining Depth Stop And Retract
X & Y-Axis Ball Screws
One Shot Lubrication

CATALOG SPECIFICATIONS:
Hole Drilling Range, Metric 0.15MM To 3.0MM
Hole Drilling Range, Inches .0059" to .012"
Work Tank Dimensions, L x W 33.5" x 20"
Overall Dimensions, F-B x L-R 53" x 40"
Overall Height 94"

NOTE: This Machine Was Designed As An EDM Drill
With The Ability To Produce An Eroded Hole In Any
Material That Is Conductive To Electric.
The Advantages Of Using This Method Include
The Ability To Drill Hardened Materials And Machine
In Or About Difficult Geometric Shapes. Because
Pure Water Is Used As A Dielectric And The Material
Is Melted Rather Than Cut The Need For Secondary
Operations Is Reduced.

F.O.B. OUR WAREHOUSE
