5" UNISON DEDTRU MODEL C CENTERLESS GRINDING SYSTEM w/6" x 18" PARKER MAJESTIC SURFACE GRINDER BASE - Sony LH51 digital readouts
| Capacity | 5" | 127 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |

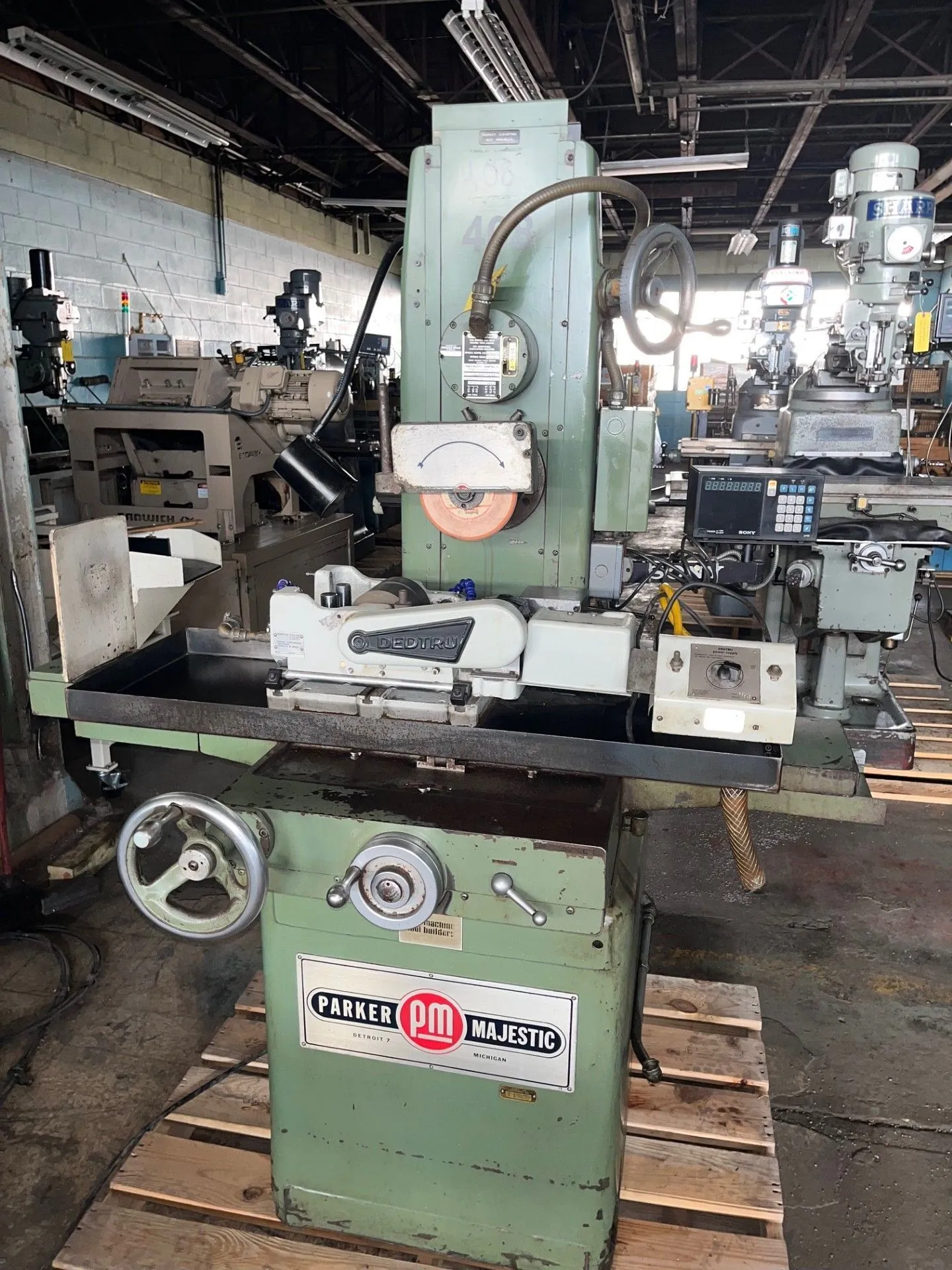

5" UNISON DEDTRU MODEL C CENTERLESS GRINDING SYSTEM
w/6" x 18" PARKER MAJESTIC SURFACE GRINDER BASE
Serial No 4172, Model C
EQUIPPED WITH:
Model C Dedtru Centerless Grinder Fixture w/Magnetic Chuck (S/N 4172)
6" x 18" Parker Majestic Surface Grinder Base (Model 2, S/N 2359A-1)
w/1 HP Spindle
Sony "LH51" Digital Readouts
CATALOG SPECIFICATIONS:
Part Diameter, Range 1/32" to 5"
Part Diameter, Range 0.8MM to 125MM
Vertical Work Height, Capacity 7"
Cross Travel 6"
Longitudinal Travel 18"
Wheel Capacity Diameter, Maximum 8"
Grinding Wheel Width Capacity, Maximum 3"
Floor Space Required, L x W 96" x 80"
Overall Height 84"
Weight Approximately 1200 LBS
NOTE: This System Allows For Thrufeed Grinding Of Cylindrical Parts, Infeed
Grinding For Headed, Splined, Geared, And Formed Parts, Secondary
Operations For Steps, Forms, And Tapers Requiring Precise Concentricity,
Size And Roundness, Tapers, And Chamfers.
F.O.B. OUR WAREHOUSE
