EC-3000 HAAS CNC Horizontal Machining Center, 30-position automatic tool changer - 30 HP 2-speed gear drive, thru-spindle coolant, 120" x 28" table, max load 10000 lbs. X/Y/Z travel: 120"/40"/32". Spindle speeds up to 6000 RPM
| X | 120" | 3,048 mm |
| Y | 40" | 1,016 mm |
| Z | 32" | 812.8 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | 50 | 50 |
| Pallet-W | 120" | 3,048 mm |
| Pallet-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 266 x 143 x 119H | 266 x 143 x 119H |
| Weight | 40000 | 40000 |

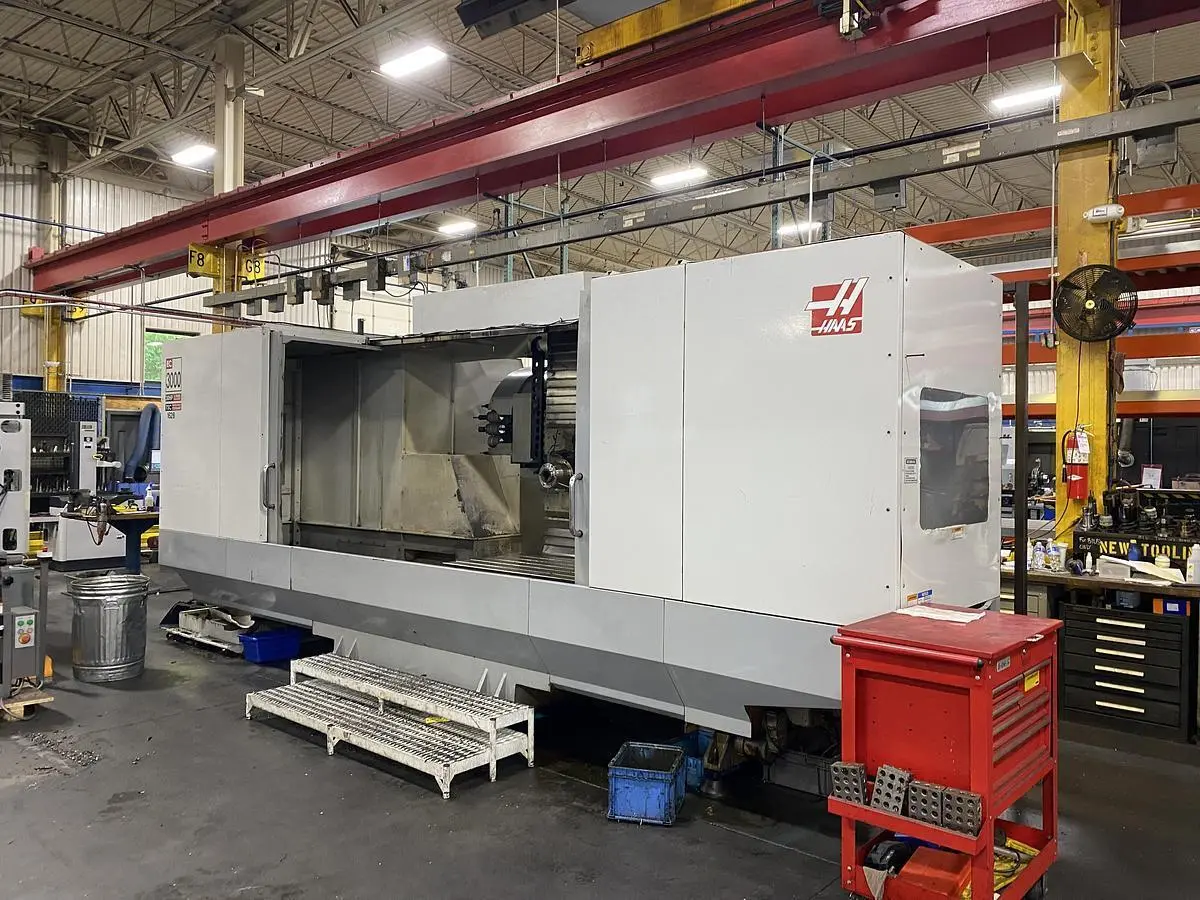

EC-3000 HAAS 3-AXIS CNC HORIZONTAL MACHINING CENTER
New 2005, Serial No 51585, Model EC-3000,
EQUIPPED WITH:
Haas CNC Control
30-Position Side-Mounted Automatic Tool Changer
30 HP 2-Speed Geared Head Drive System
Thru-Spindle Coolant System
CATALOG SPECIFICATIONS:
Table Dimensions, L x W 120" x 28"
Table Load Capacity, Maximum 10000 LBS
X-Axis Longitudinal Travel 120"
Y-Axis Head Vertical Travel 40"
Z-Axis Table Cross Travel 32"
Spindle Taper #50
Tool Diameter Full, Maximum 4"
Tool Diameter Adjacent Empty, Maximum 10"
Spindle Speeds, Range 0 to 6000 RPM
Cutting Feedrate Range 360 IPM
Rapid Traverse Rate 540 IPM
Motor Horsepower 30 HP
Overall Dimensions, W x D 266" x 143"
Overall Height 119"
Weight Approximately 40000 LBS
F.O.B. OUR WAREHOUSE
