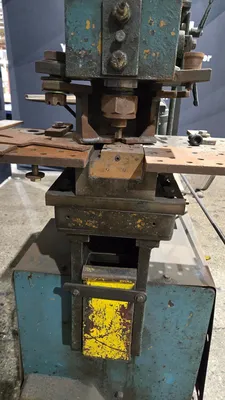

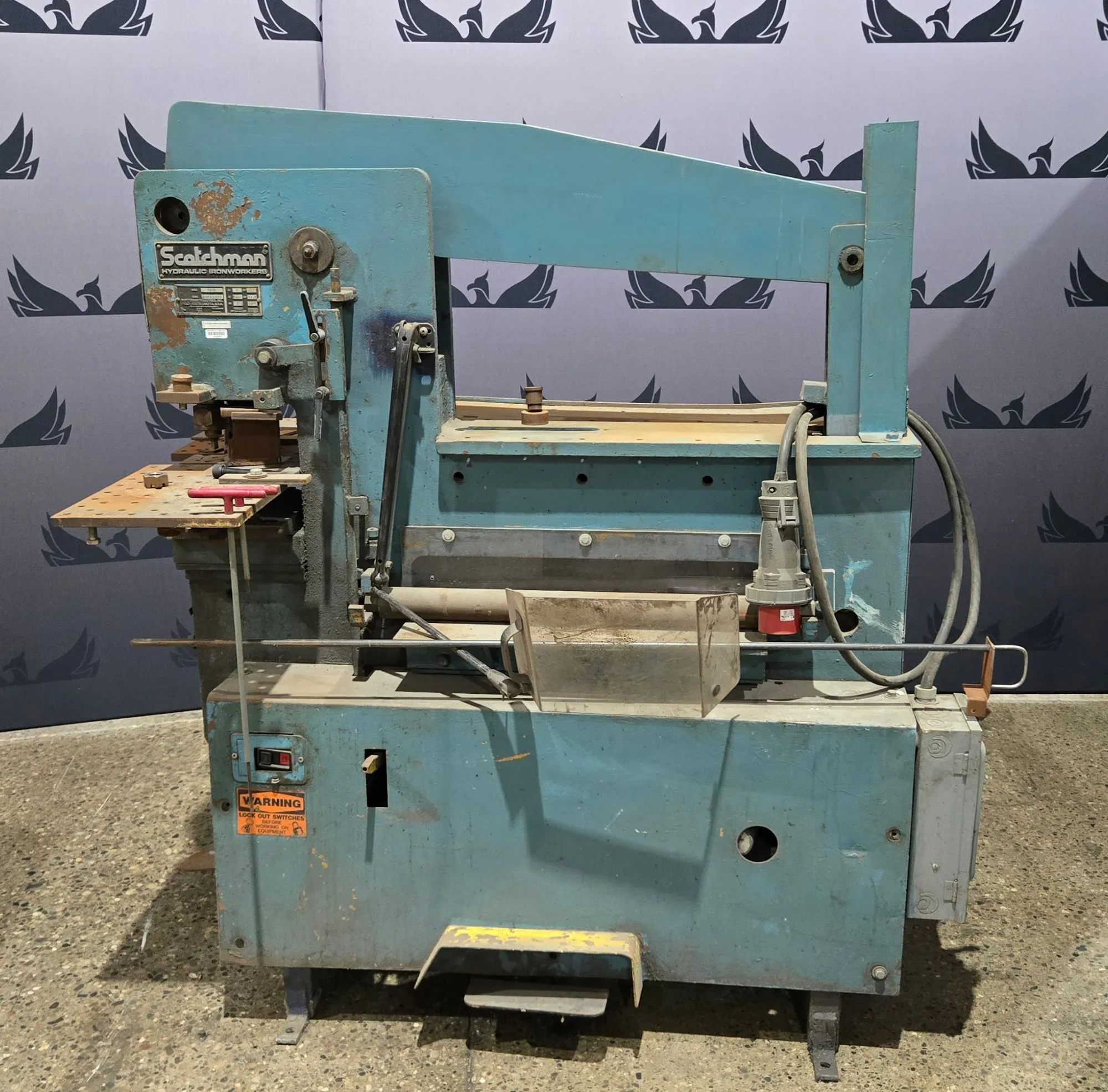

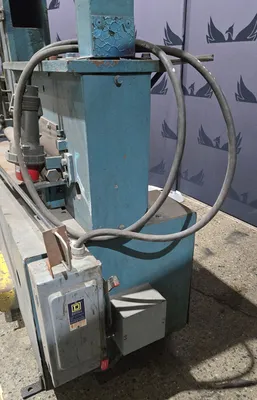

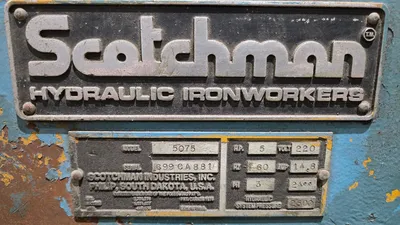

The Scotchman 5075 is a widely used and respected hydraulic ironworker, suitable for various metalworking tasks in industries like construction, manufacturing, and metal fabrication.
Key features and specifications:

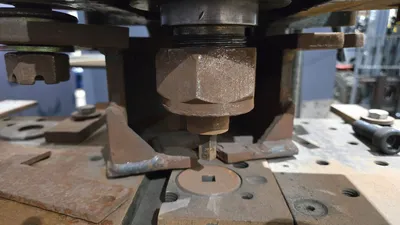

50 Ton Punching Capacity: Capable of punching holes up to 1-1/4" in 1/2" thickness and 13/16" in 3/4" thickness.

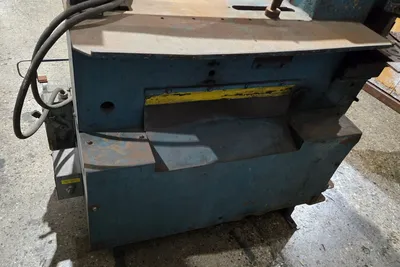

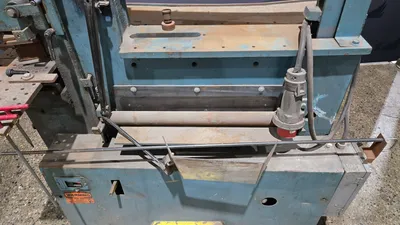

Bar Shear: Shears up to 24 inches wide and 3/16 inch thick, or 6 inches wide and 3/4 inch thick, without blade adjustments. Optional 12 or 24 inch blade lengths are available.
7.5 inch open end throat: Provides generous space for manipulating materials.
Stroke Control: Adjusts cutting and punching actions for optimal tool clearance and stroke rate.
Automatic Hydraulic Relief Valve: Protects the machine from overloading.

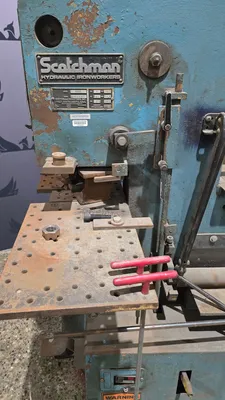

Tool Table: Machined work area for mounting quick change component tooling.
Quick Change Tooling: Optional tooling is available for shearing rod, angle, channel, and brakes.
Motor: Typically 5 HP.
Strokes per Minute: 30 (light material).
Dimensions: Approximately 27.5”W x 54”L x 65”H.
Weight: Approximately 2200 lbs.
Hydraulic Operating Pressure: 2500 PSI.
| Tonnage | 50 T | 45.359 t |
| Angle (L1) | 4" | 101.6 mm |
| Angle (L2) | 4" | 101.6 mm |
| Angle (T) | 1" | 25.4 mm |
| Power | 5 hp | 5 hp |
| Throat | 7.5" | 190.5 mm |
| Dimensions | 62X36X66 | 62X36X66 |
| Weight | 2326lbs | 2326lbs |
