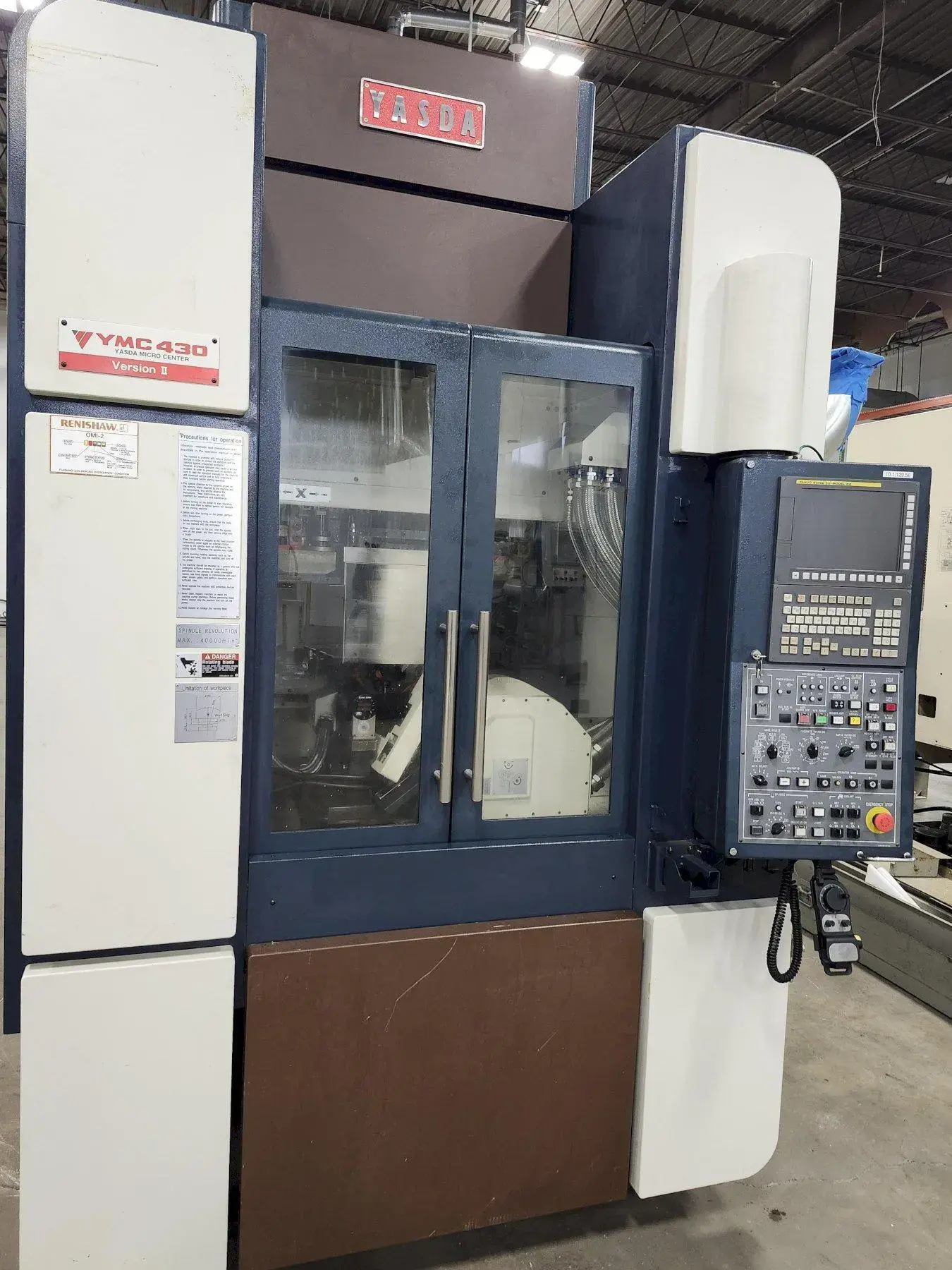

2017 YASDA YMC-430 Vertical Machining Center, featuring a 40,000 RPM spindle, 32-position ATC, and a 16.5" x 11.8" x 9.8" travel. Equipped with Fanuc 31i-B5, Renishaw Probe, and Haimer Tooling Package.
| X | 16.5" | 419.1 mm |
| Y | 11.8" | 299.72 mm |
| Z | 9.8" | 248.92 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 40,000 RPM | 40,000 RPM |
| # ATC | 32 | 32 |
| Taper | HSKE32 | HSKE32 |
| Table-W | 13.8" | 350.52 mm |
| Table-L | 23.6" | 599.44 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Fanuc 31i-Model B5
40000 RPM Spindle
32 Position Tool Changer,
Renishaw Probe OMI-II
Manual Pulse Generator
Linear Drives/Scales/Motors
Haimer Tooling Package
