LANDIS 10X20 1R cylindrical grinder available now. This used piece offers reliable performance for precise operations. Ideal for those seeking quality equipment for grinding tasks.
| Swing | 10.875" | 276.22 mm |
| Centers | 20" | 508 mm |
| Plain or Angle Head | Plain | Plain |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| Wheel Power | 5 hp | 3.7 kW |
| Wheel Speed | 2,530 RPM | 2,530 RPM |
| Dimensions | 8'10" x 4'2" | 8'10" x 4'2" |
| Weight | 4100 LBS | 4100 LBS |

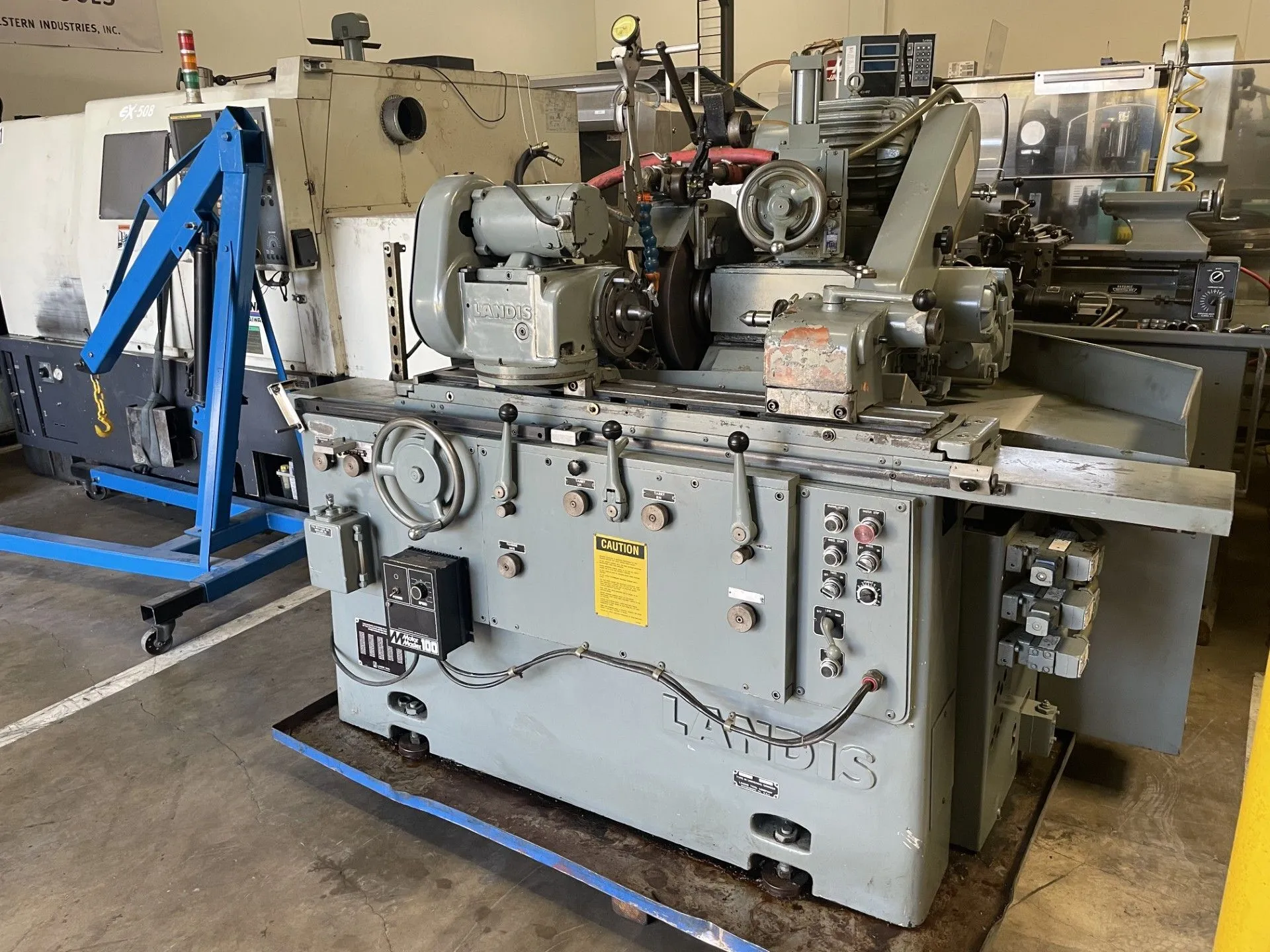

LANDIS 10X20 1R OD Cylindrical Grinder #7886 #2
SPECIFICATIONS:
Swing Over Table, Maximum: 10.875"
Grinding Diameter, Maximum: 10"
Distance Between Centers, Nominal: 20"
Grinding Wheel Diameter, Minimum: 7.5"
Grinding Wheel Diameter, Standard: 12"
Grinding Wheel Width, Maximum: 1.5"
Grinding Wheel Width, Standard: 1"
Grinding Wheel Hole Diameter: 5"
Table Swivel Taper: 4 IPF
Table Swivel Angle: 20-DEGREES
Headstock Swivel Range: 120-DEGREES
Grinding Wheelhead Swivel Range: 90-DEGREES
Workhead Center Taper: #10 JARNO
Tailstock Center Taper: #6 JARNO
(2) Spindle Speeds, Range: 2000 & 2530 RPM
Workhead Spindle Speeds, Range: 60 to 600 RPM
Table Longitudinal Feeds, Infinit:e 2 to 240 IPM
Grinding Wheelhead Spindle Motor: 5 HP/1775 RPM
Electrical System: 220-440/3/60
Floor Space Required, L x D: 8'10" x 4'2"
Weight, Approximately: 4100 LBS
