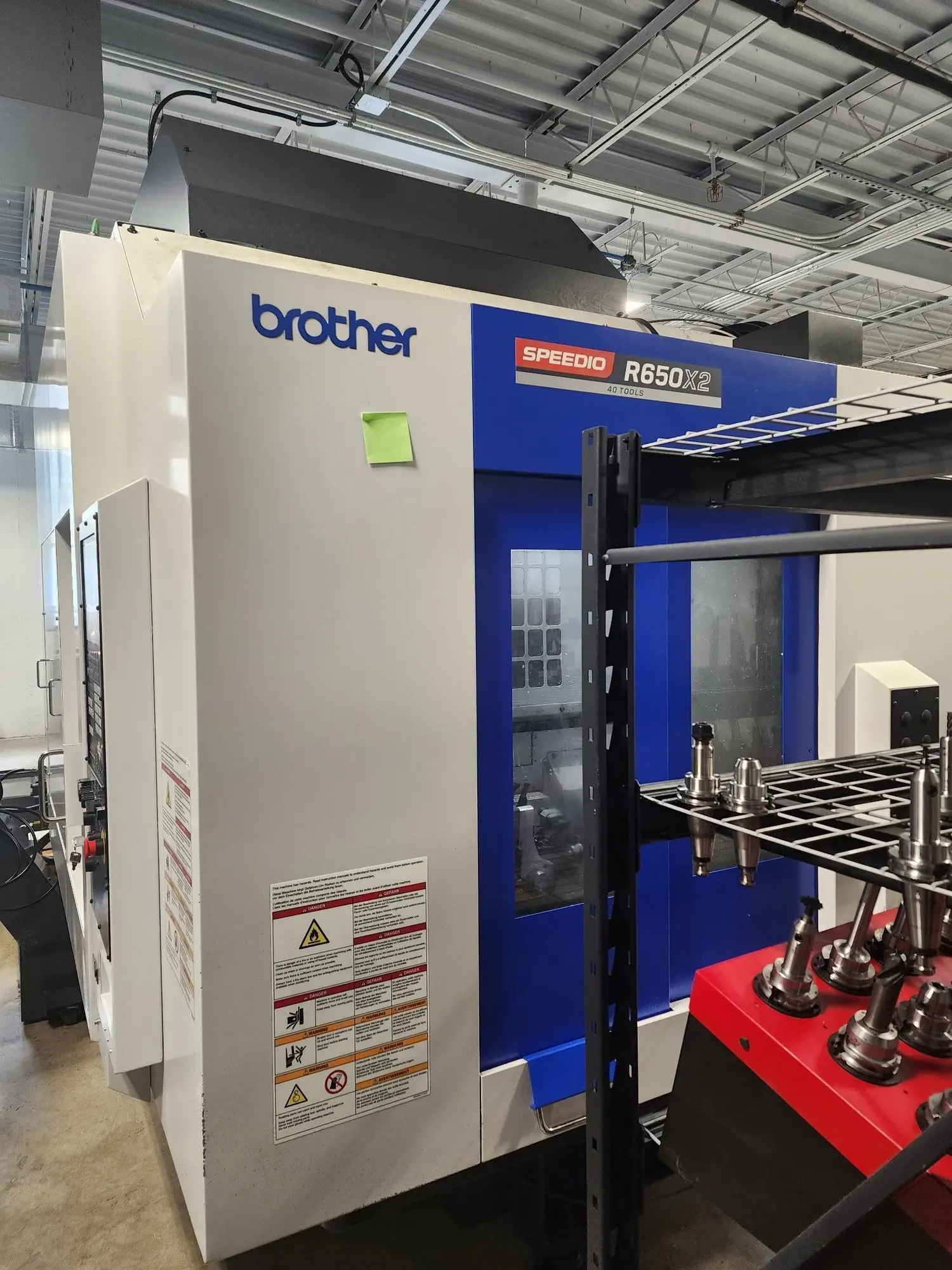

USED 2021 BROTHER SPEEDIO R650X2
Overview
Description
BROTHER SPEEDIO R650X2 CNC Drilling and Tapping Center, New in 2021. Low Hours. Includes Rotary Table. 25.6" X, 16.7" Y, 17.1" Z travel, 17.0 kW power, 16000 RPM, BT30 taper, and 40 ATC capacity.
Specifications
| X-Axis | 25.6" | 650.24 mm |
|---|---|---|
| Y-Axis | 16.7" | 424.18 mm |
| Z-Axis | 17.1" | 434.34 mm |
| Power | 17 hp | 12.7 kW |
| RPM | 16,000 RPM | 16,000 RPM |
| # ATC | 40 | 40 |
| Taper | BT30 | BT30 |
X 25.6"
Y 16.7"
Z 17.1"
Power 17 hp
RPM 16,000 RPM
# ATC 40
Taper BT30
Equipped With
Brother CNC-C00 Control with Built-In PLC
Brother T-200A Rotary Table
Chip Conveyor
Blum Probing
16,000 RPM BBT CTSI Spindle
9.8/6.5 HP Main Spindle Low Inertia Motor - IPM Motor Type
BT-30 Taper, 40 Tool High-Speed ATC
Travel: 25.6¨ x 15.7¨ x 17.1¨
Table: 31.5¨ x 15.7¨
Rapid Traverse: X,Y,Z - 1,969 IPM
1,000 PSI High Pressure Pump
Tool Washing System
Automatic Grease Lubrication System
Chip Shower System
250L Coolant Tank
Complete Covers with Ceiling Cover and Safety Door Interlock System
Chip Conveyor
Blum Probing
