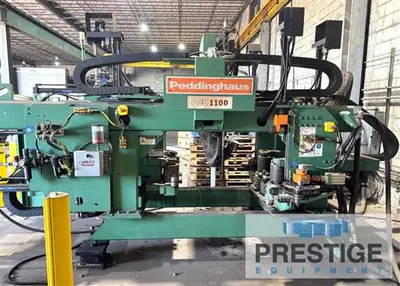

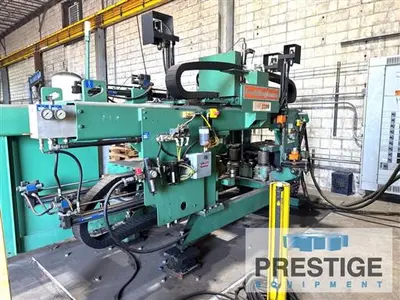

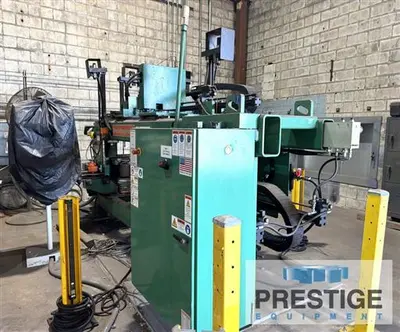

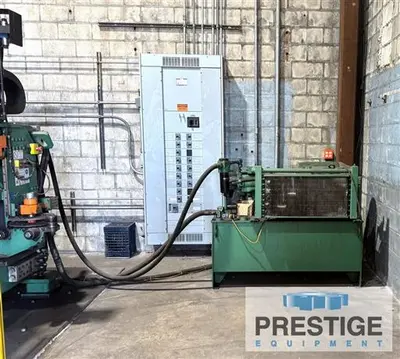

USED 2014 PEDDINGHAUS PCD1100/3B

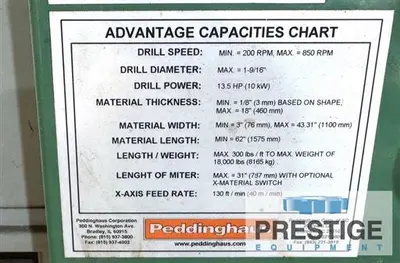

CAPACITY:
Maximum Machining Width: 43.31"
Maximum Machining Height: 18"
Minimum Machining Width: 3"
Minimum Length Piece Part: 62"
Minimum Bar Stock Thickness: 3/4"
Number of Drill Spindles: 3
Drill Diameter: 1-9/16"
Power per Spindle: 13.5 HP
Spindle Speeds: 200 - 850 RPM
Spindle Stroke: 13"
Positioning Stroke on Flange Drills: 0 - 18"
Positioning Stroke on Web Drill: 0 - 43.31"
X-Axis Feed: 130 FPM
Maximum Work Piece Weight: 18,000 Lbs

Equipped With:

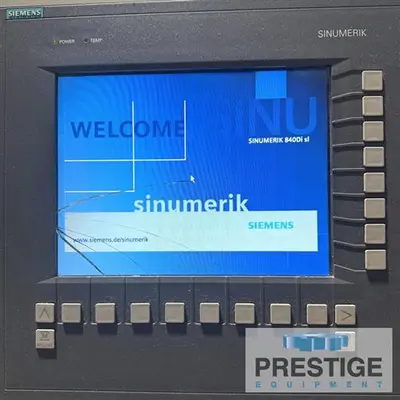

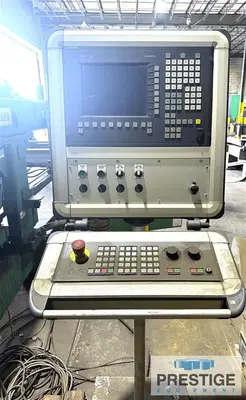

Siemens 840Di CNC Control
Programmable Spindle Feeds
Infinitely Variable Spindle Speeds
Unist MQL (Minimum Quantity Lubrication)

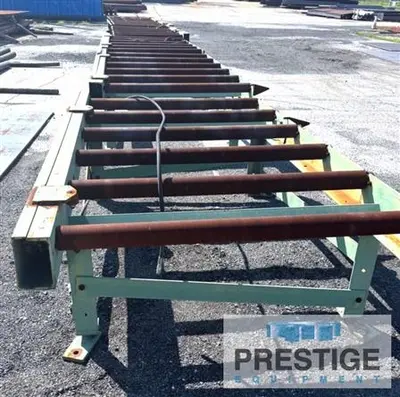

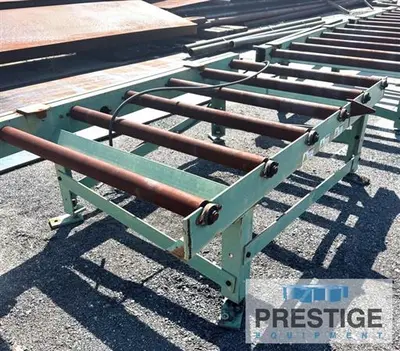

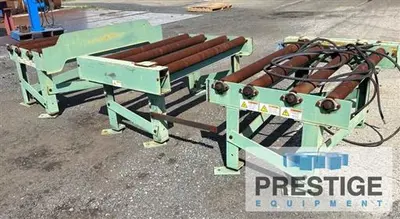

60'300 Lbs/Ft Powered Roller Conveyor

NOTE:
Inspect in a Plant

Features:
Siemens 840Di CNC Control
Programmable Spindle Feeds
Infinitely Variable Spindle Speeds
Unist MQL (Minimum Quantity Lubrication)
60'300 Lbs/Ft Powered Roller Conveyor
