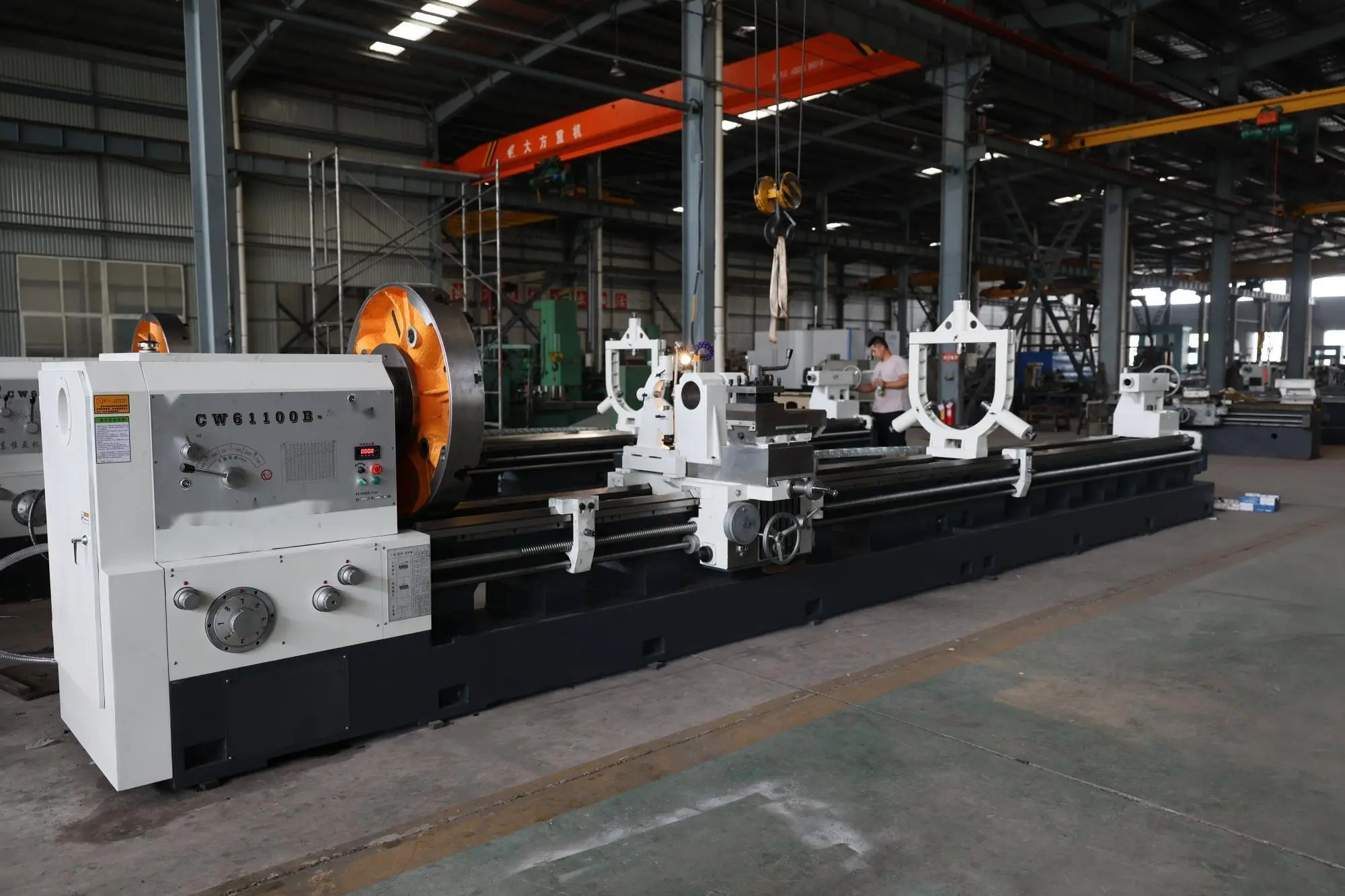

Universal Heavy Duty Lathe-SP2148-II Ideal for larger workpieces.
| Swing | 39.37" | 1,000 mm |
| Swing Over Cross Slide | 26.77" | 679.96 mm |
| Centers | 118.11" | 3,000 mm |
| Spindle Bore | 4.13" | 104.9 mm |
| RPM | 700 RPM | 700 RPM |
| Dimensions | 5200x1800x1600mm | 5200x1800x1600mm |
| Weight | 14762.36lbs | 14762.36lbs |
Max. load capacity:4T
Max swing over bed:1000mm
Max swing over cross slide:680mm
Center distance:3M
Bed width:600mm
Spindle bore:∮105mm
Spindle nose:C11
Spindle taper:Metric 120/1:20
Mode of spindle speed:3 gears, infinitely variable speed within
gears
Spindle speeds:Low: 25-100 / Medium: 80-260 / High: 240-700
r/min
Z axis feed grade /range:32/0.095-1.4 mm/r
X axis feed grade /range:32/0.042-0.7 mm/r
Carriage raid traverse speed:3740 mm/min
Cross slid raid traverse speed:1870 mm/min
Metric thread grade/range:22/1-15 mm
Inch thread grade/range:26/14-1T.P.I
Traverse of cross slide:520mm
Max. Traverse of turret:200mm
Tailstock quill diameter:120mm
Tailstock quill travel:290mm
Tailstock quill taper:MT6
No.of tool stations: 4-Position turret
Tool shank size:32*32mm
Chuck:K11-400 Manual Three-jaw Chuck
Overall dimensions(L×W×H):5200×1800×1600mm
Machine weight:6.7T
2.Standard accessories:
Four-station tool rest, three-jaw chuck,
Chuck:K11-400 Manual Three-jaw Chuck
Overall dimensions(L×W×H):5200×1800×1600mm
Machine weight:6.7T
2.Standard accessories:
Four-station tool rest, three-jaw chuck, manual tailstock,
automatic lubrication, cooling system
Power tailstock.
