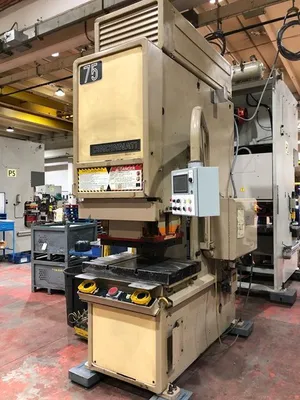

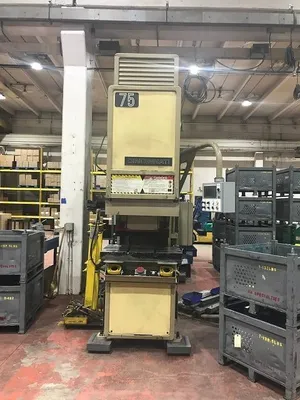

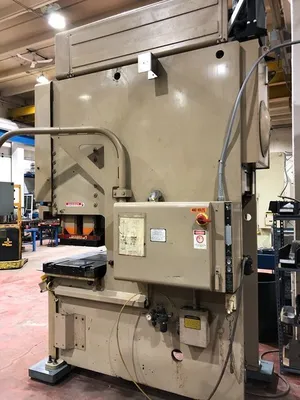

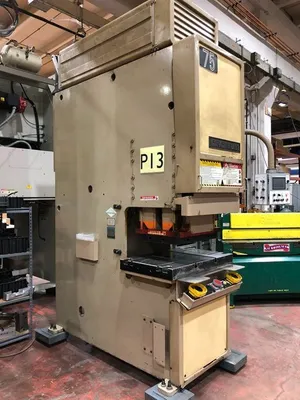

CINCINNATI 75 OBS HYDRAULIC GAP FRAME PRESS
Serial Number 43019
Capacity: 75 Tons @ Low Speed; 42 Tons @ Medium Speed
Stroke Length (Adjustable): 3/4" Min.; 8" Max.
Open Die Height (Slide Bolster): 14-1/4"
Closed Die Height: 6-1/4"
Bed Area: 36" L-R x 24" F-B
Ram Area: 24" L-R x 18" F-B
Opening Through Back: 25"
Distance Bed to Floor: 39"
Knock-Out Stroke: 4"
Speeds: 606 IPM High
450 IPM Low
Return 75 IPM Medium
695 IPM High Return
61 IPM Low
Adjustable 8-Point, Square Type Gibbing
Welded Steel Plate Construction
EQUIPPED WITH:

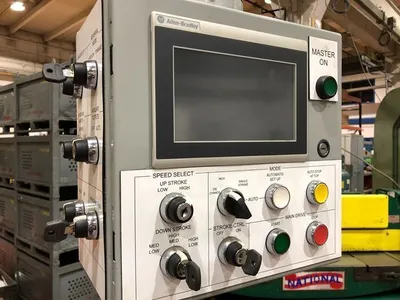

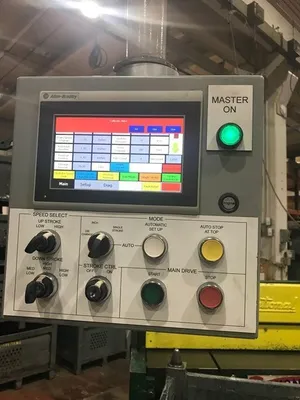

Updated Allen Bradley Controls Overload Protection
Rebuilt Heat Exchanger
Automatic Lubrication System
Dual Palm Button Operation
T-Slotted Bolster Plate
20 HP AC Main Drive (Pump) Motor
Allen Bradley Electrical Controls
Price......$12,500 "As Is, Where Is" FOB Loaded on Truck Michigan Warehouse
| Tonnage | 75 T | 68.039 t |
| Stroke | 8" | 203.2 mm |
| Daylight | 0" | 0 mm |
| Power | 20 hp | 14.9 kW |
| Bed W | 36" | 914.4 mm |
| Bed L | 24" | 609.6 mm |
| IPM | 606 ipm | |
| Control | CNC (Allen-Bradley) | CNC (Allen-Bradley) |
