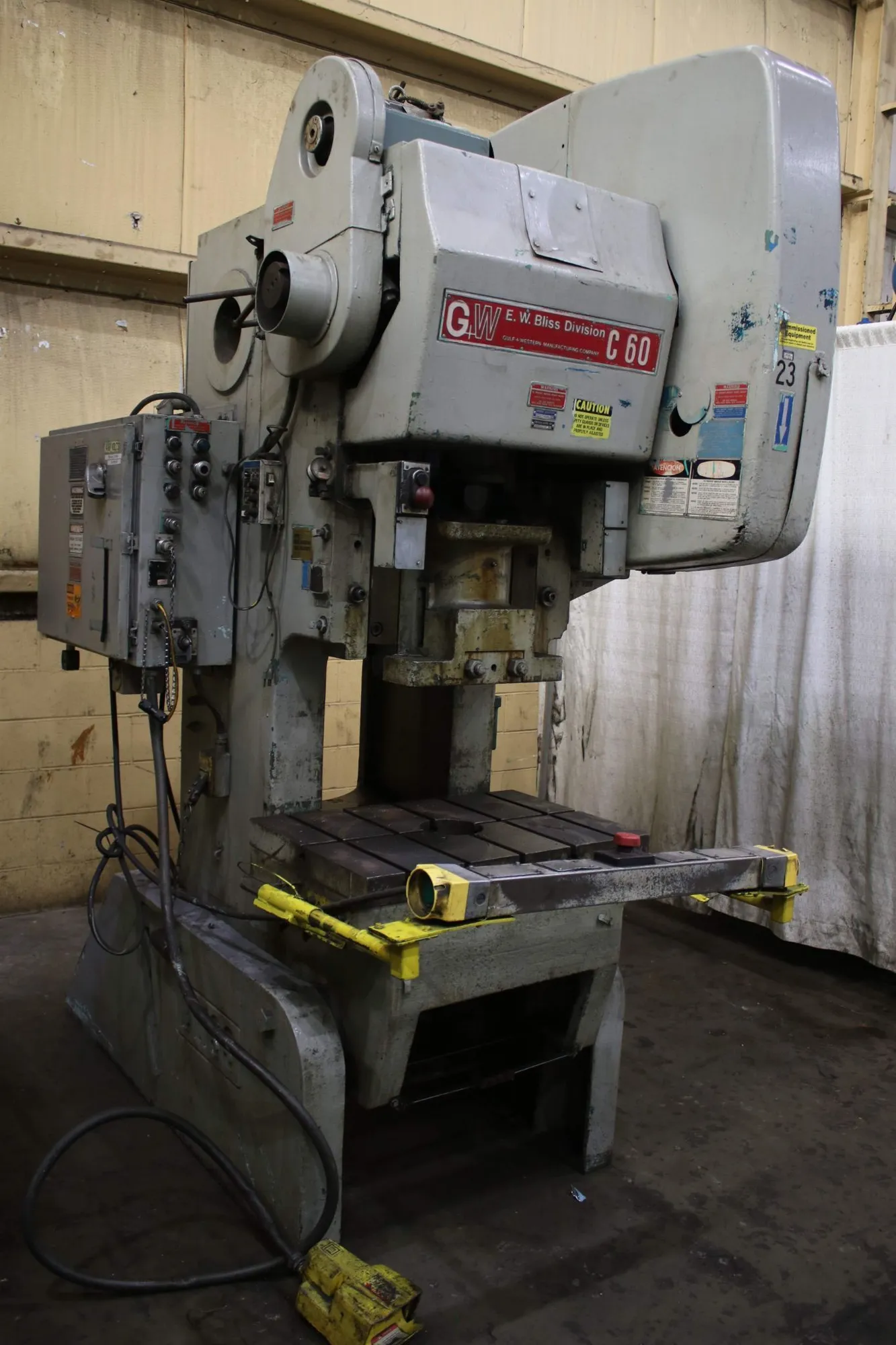

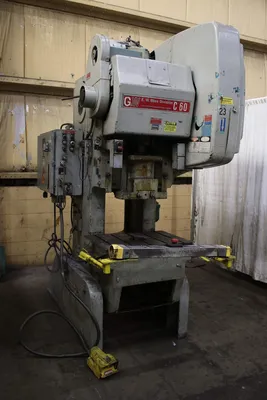

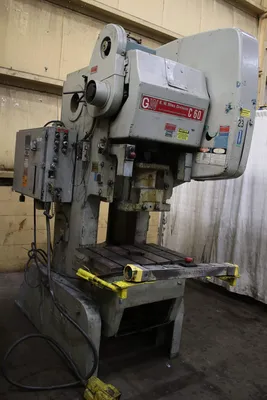

Used Bliss 60 Ton Open Back Inclinable Press
Inv #101122JVYMS
Model… C60

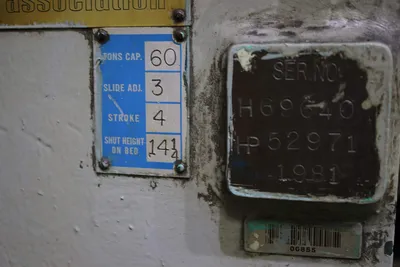

Serial Number…. H69640
New… 1985
Stroke…. 4”
Shut Height…. 14-1/4” sdau
Adjustment…. 3”
SPM…. 100

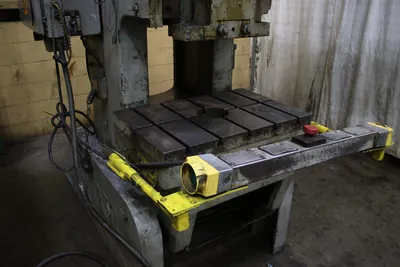

Bed Area…. 32” L.R. x 21” F.B.

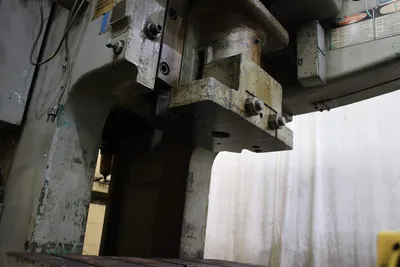

Ram Area…. 17” L.R. x 12” F.B
Bolster Plate… 32” L.R. x 21” F.B. x 3” thick “T” Slotted
Air Clutch & Brake
T Stand & Palm Buttons
Motor & Controls
Price......On Request "As Is, Where Is" FOB Loaded On Truck Holland, Ohio.
| Tonnage | 60 T | 54.431 t |
| Stroke | 4" | 101.6 mm |
| Shut Height | 0" | 0 mm |
| Bed W | 32" | 812.8 mm |
| Bed L | 21" | 533.4 mm |
| SPM | 100 strokes/min. | 100 strokes/min. |
| Air Clutch (Yes/No) | 'Yes' | 'Yes' |
| Type (BG, Double Action, FW) | 'Flywheel' | 'Flywheel' |
| Crank (Single/Double) | 'Single' | 'Single' |
