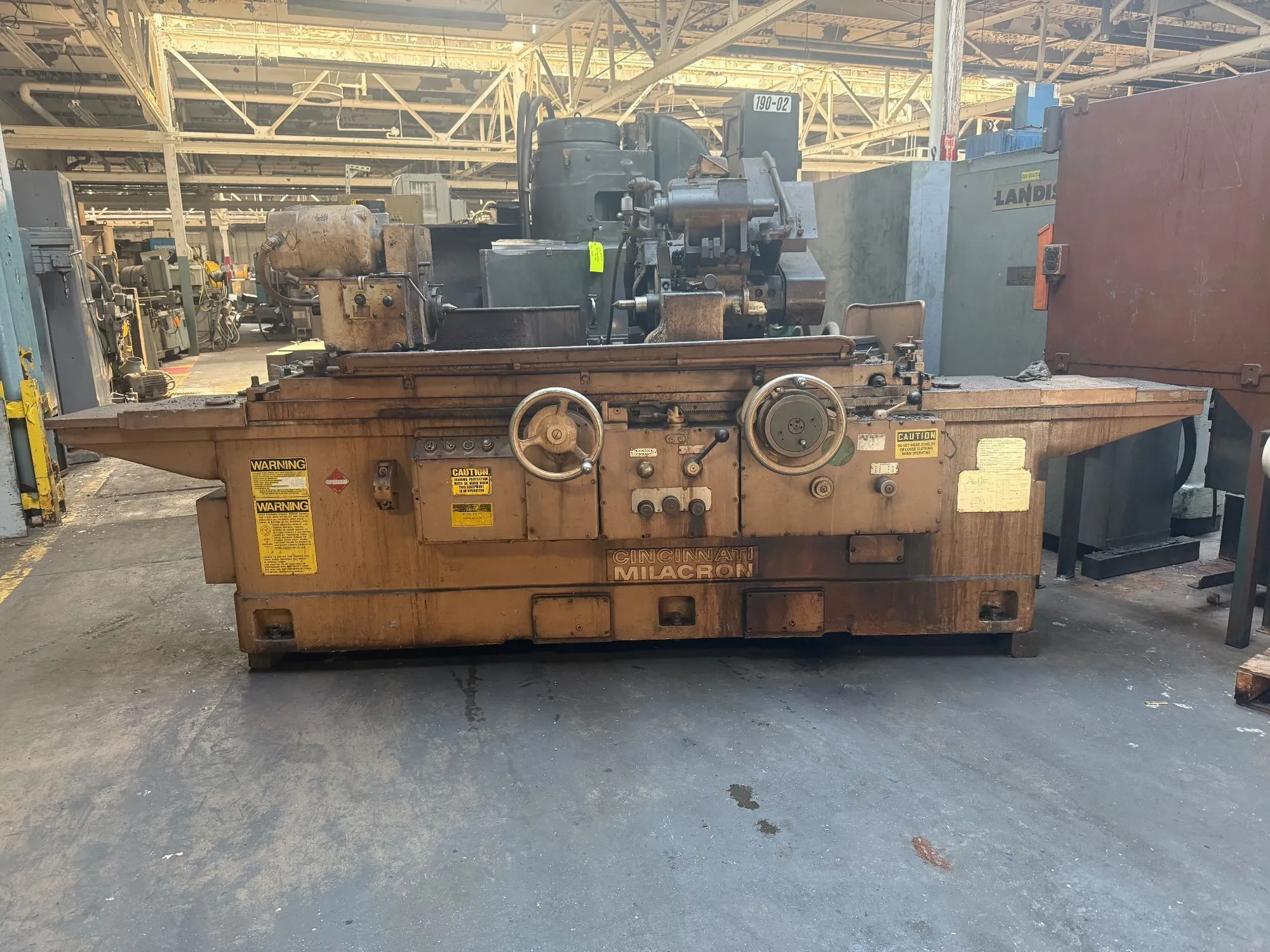

USED 1974 CINCINNATI 12x36 DE

Cincinnati 12x36 DE Universal Cylindrical Grinder, 12" Swing, 36" Between Centers, Variable Speed Headstock, Table Dresser, Coolant In Base

12" x 36" CINCINNATI MILACRON UNIVERSAL CYLINDRICAL GRINDER

S/N 35323D-74-0004 Year: 1974

STANDARD SPECIFICATIONS
Swing over table……………………………………………………12"
Distance between centers………………………………………….. 36"

GRINDING WHEEL
Swivel range - lower swivel, right and left……….……………….. 90º
- upper swivel, right and left………………….…….. 30º
Grinding wheels (diameter x face x hole)…………………………. 18" x 3" x 5"

CROSS FEED
Automatic infeed at table reversal (diameter reduction)…….….… .0002" to .005"
Pick feed - right end only, left end only..….………………...…….. Yes
- right and left ends....……..………………………..…… Yes
Wheel head movement per turn of cross feed:
Hand wheel - low…………………………………………………... .050"
- high……..……………………………………………. .200"
Minimum infeed increment in terms of diameter reduction………... .000050"

HEAD STOCK & FOOT STOCK
Range of work rotation speeds, RPM
(+/- 10% allowable inf. variable)..…………………………….…… 50 to 500
Head stock swivel - toward wheel head….………….…………..…. 90º
- away from wheel head….…………………….. 30º

TABLE
Range of table traverse speeds, inches per minute inf. var..………..… 3 to 220
Accuracy of table reversal at all traverse rates…………………….…. .004"
Independent right-hand and left-hand tarry adjustments……………… 0 to 5 seconds
Mechanical hand table traverse per revolution of
Hand wheel - rapid………………………………………………….… 15/16"
- slow…….………………………………………….…… .0.2"

POWER REQUIREMENTS
Wheel head motor..……………………………………………….…... 3 HP
Head stock motor….………………………………………………..… 1 HP
Internal grinding attachment motor………………………………….... 2 HP

EQUIPMENT & FEATURES
Swing down internal grinding attachment.
Rapid feed.
Coarse and fine feed.
Pick feed.
Live and dead center head stock.
Coolant in base.
Variable speed head stock.

Call G.C.H. for all your grinding requirements. Many options available.

Specifications are deemed accurate, however, subject to verification or prior sale.
